DTC B2511-00: Head Lamp High LH SCG: General Description

Once BCM receives head lamp high switch working signal, it sends the signal to SJB by CAN communication. SJB turns on headlamp high.

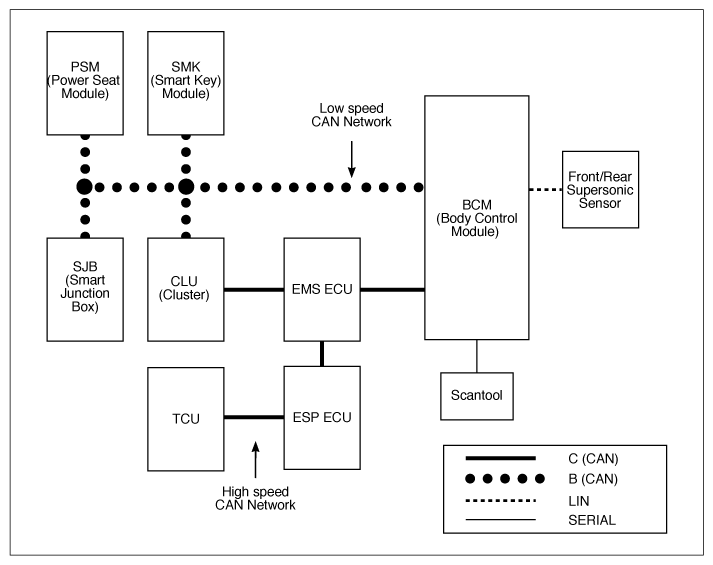

Fig 1: BCM CAN Communication Diagram (Head Lamp High Switch)

Courtesy of KIA MOTORS AMERICA, INC.
