Circuit Diagram

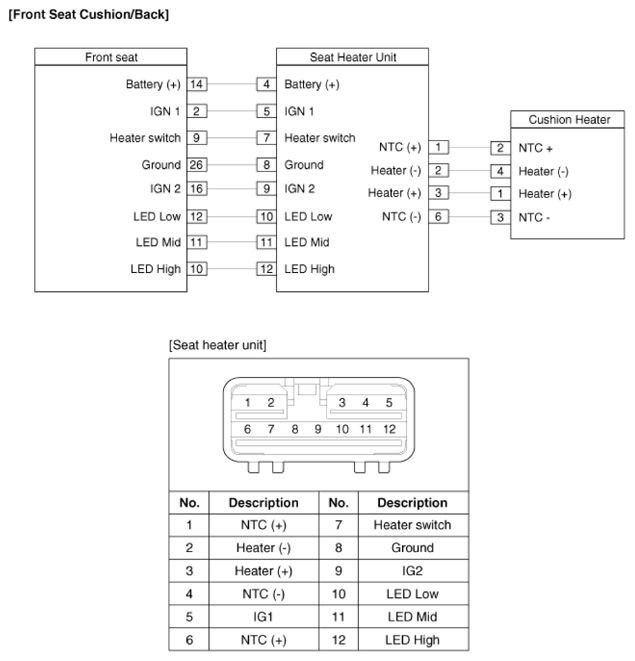

Fig 1: Front Seat Circuit Diagram

G11792239

Courtesy of KIA MOTORS AMERICA, INC.

* The cushion heater and back cushion are connected with wiring.
