Seat Heater (Air Ventilation)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

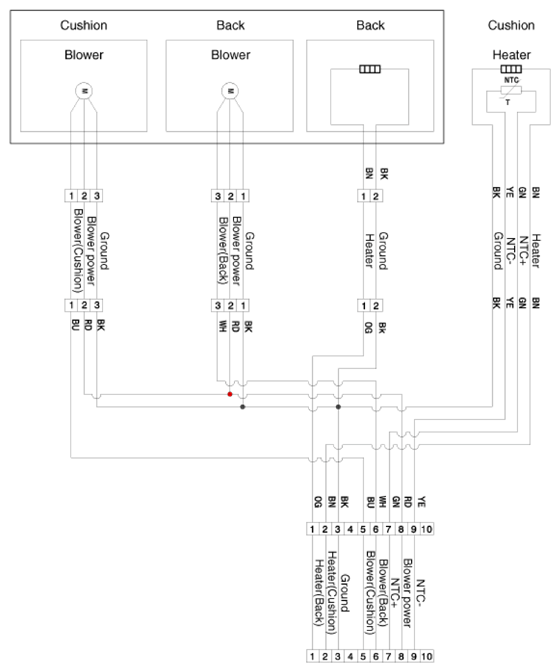

Fig 1: Seat Heater (Air Ventilation) Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

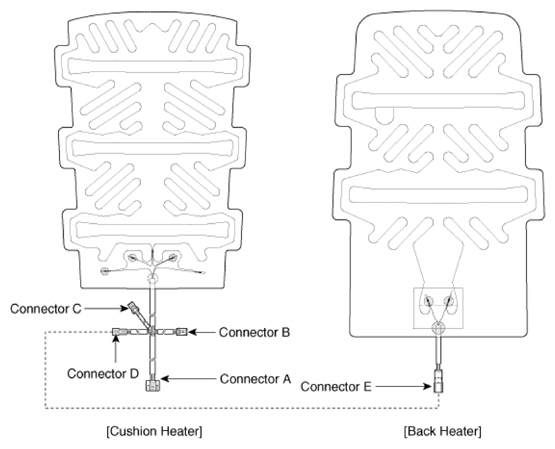

Fig 2: Seat Heater (Air Ventilation) Circuit Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

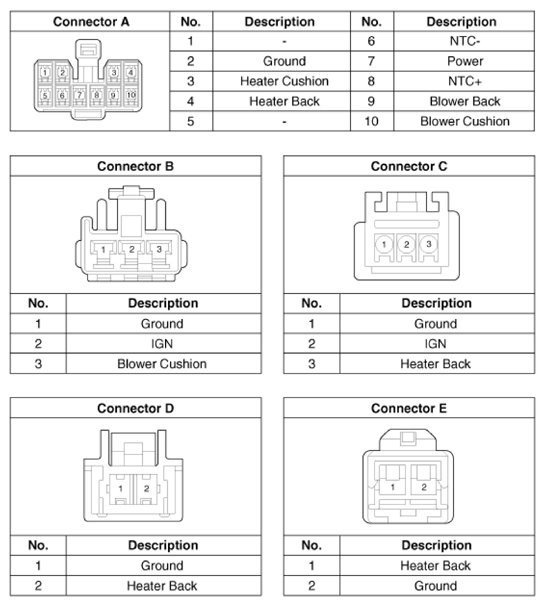

Fig 3: Seat Heater (Air Ventilation) Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
