Kia
>>
2016
>>
Forte Koup EX, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Seats
>>
Seat Electrical
>>
Seat Heater Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

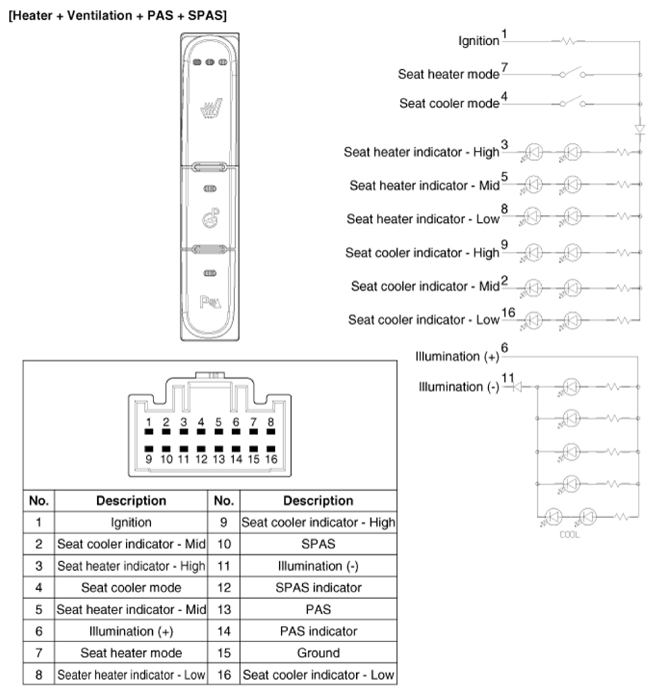

Fig 1: Seat Heater Switch Circuit Diagram (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

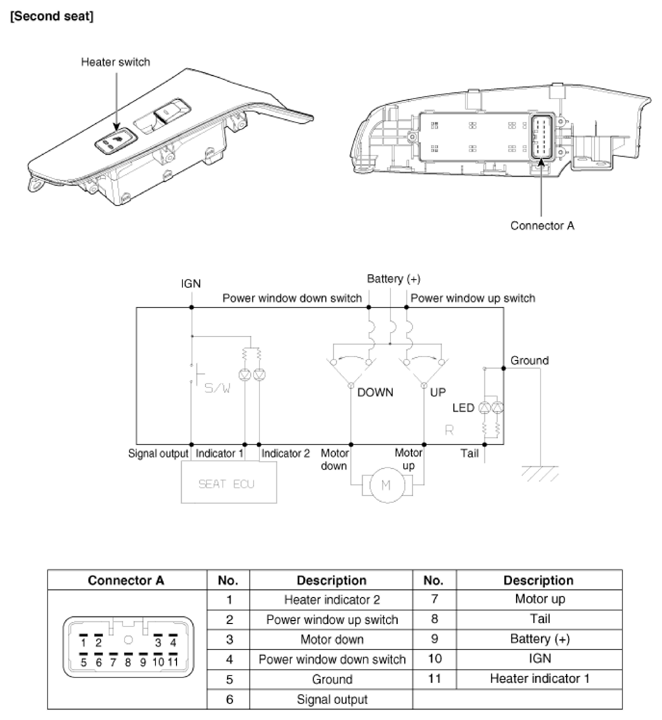

Fig 2: Seat Heater Switch Circuit Diagram (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

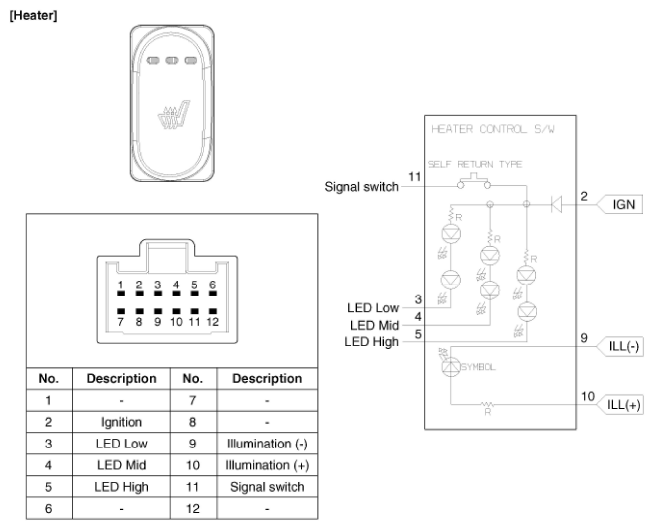

Fig 3: Seat Heater Switch Circuit Diagram (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

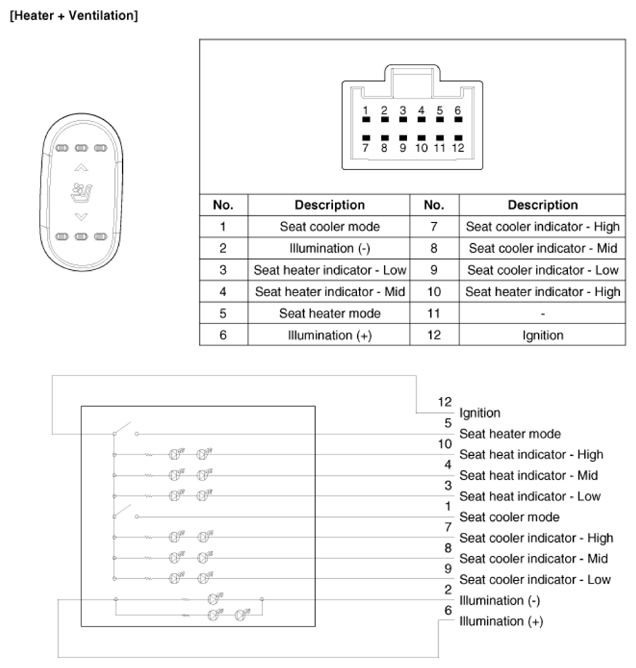

Fig 4: Seat Heater Switch Circuit Diagram (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
