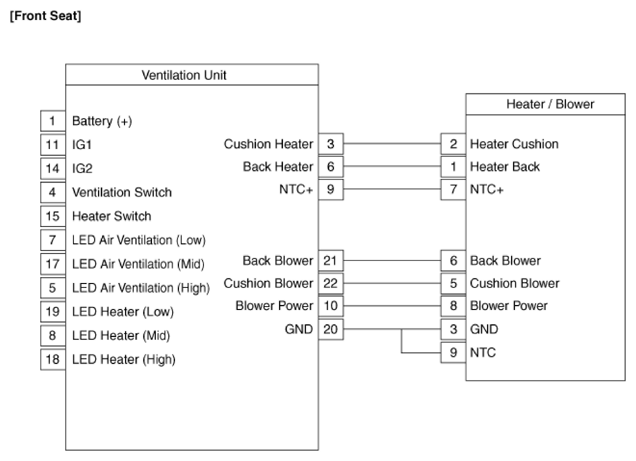

Home >> Kia >> 2016 >> Forte Koup EX, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Electrical >> Air Ventilation Seat Unit >> Schematic Diagrams >> Circuit Diagram
