Component Inspection

■ Actuation Test

1. Connect GDS to data link connector (DLC).
2. Engine "ON".
3. Perform "DBL (Dynamic Bending Light) Max Position-RH" in the "Actuation Test"  with GDS.
4. Monitor "DBL (Dynamic Bending Light) Position-RH" in the "Current Data"  with GDS.

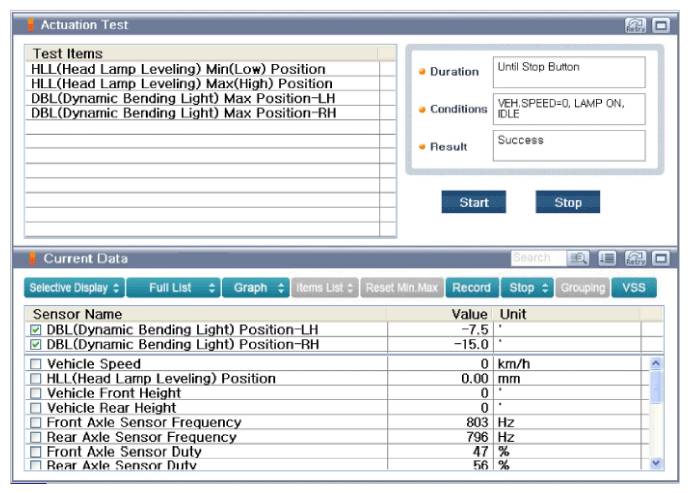

   Fig 1: Scantool Display - Actuation Test (DBL Right Postion)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the head light operated properly with left and right?

   YES

   • Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and AFLS ECU memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination or damage.
   • Repair or Replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good Head Lamp and check for proper operation. If problem is corrected, replace Head Lamp and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
