Component Inspection

■ Inhibitor switch check (For A/T)

1. Place vehicle on flat ground.
2. Connect GDS to Data Link Connector (DLC).
3. Ignition "ON" or Engine "ON" and shift gears.
4. Monitor the "Shift Lever Switch" parameters in the "Current Data" with GDS in TCU system.

■ Back-up lamp switch check (For M/T)

1. Place vehicle on flat ground.
2. Connect GDS to Data Link Connector (DLC).
3. Ignition "ON" or Engine "ON" and shift gear to "Reverse" position.
4. Monitor the "R Inhibit output" parameters in the "Current Data" with GDS in CLU system.

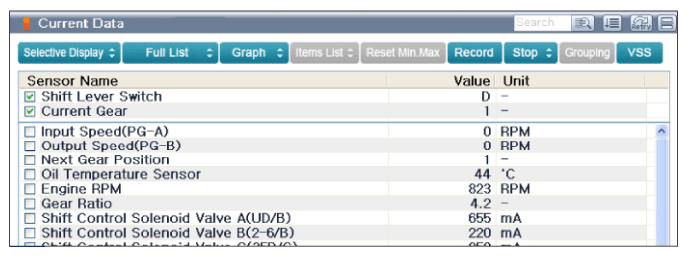

   Fig 1: Scantool Display - TCU Current Data (Gear Position Signal)

   Courtesy of KIA MOTORS AMERICA, INC.

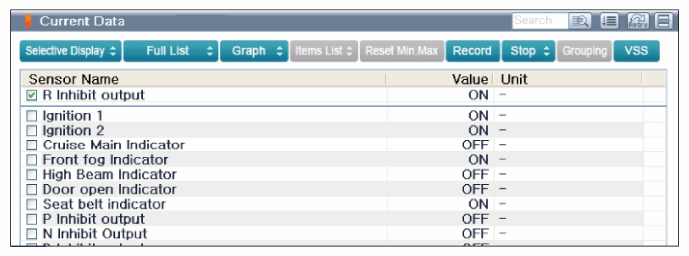

   Fig 2: Scantool Display - CLU Current Data (Gear Position Signal)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is parameter displayed changes when shifting gears?

   YES

   • Substitute with known good AFLS-ECU or TCU (A/T) or CLU (M/T) and check for proper operation. If the problem is corrected, replace ECU and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
     NOTE: * In case of replacing AFLS-ECU, perform following procedures.

     1. "Parameter Download" for initializing AFLS-ECU. (Refer to B1661 )
     2. "Calibration of Sensors" for height sensor calibration. (Refer to B1637 )


     * In case of replacing TCU (A/T) or CLU (M/T), perform following procedures.

     1. "Variant Coding" (Refer to C1702 )

   NO

   • Substitute with known good inhibitor switch (For A/T) and check for proper operation. If the problem is corrected, replace inhibitor switch and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   • Substitute with known good Back-up lamp switch (For M/T) and check for proper operation. If the problem is corrected, replace Back-up lamp switch and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
