Circuit Diagram
Circuit Diagram

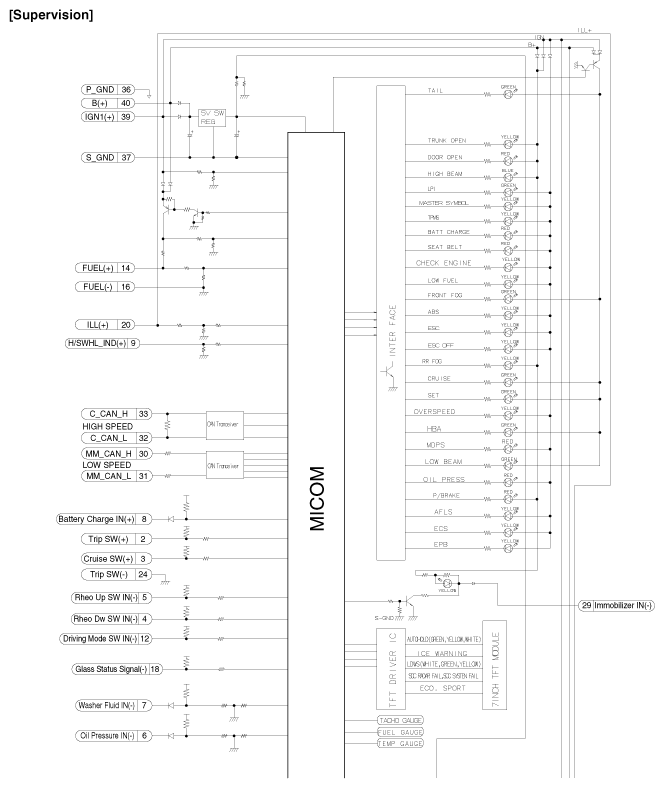

Fig 1: Instrument Cluster Circuit Diagram (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

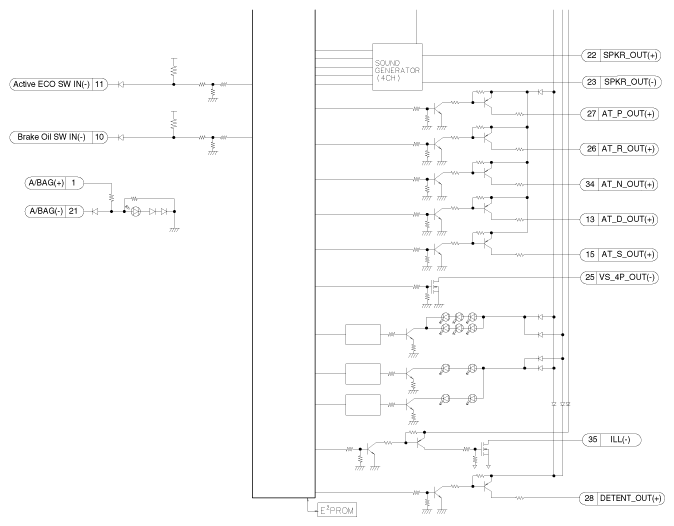

Fig 2: Instrument Cluster Circuit Diagram (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

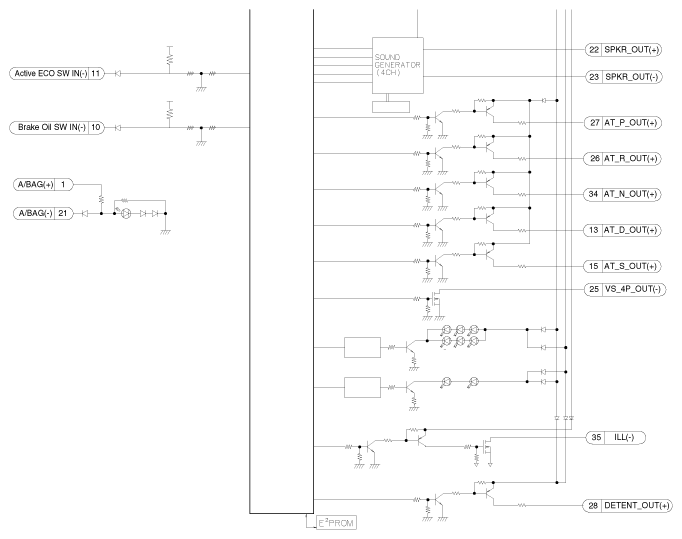

Fig 3: Instrument Cluster Circuit Diagram (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

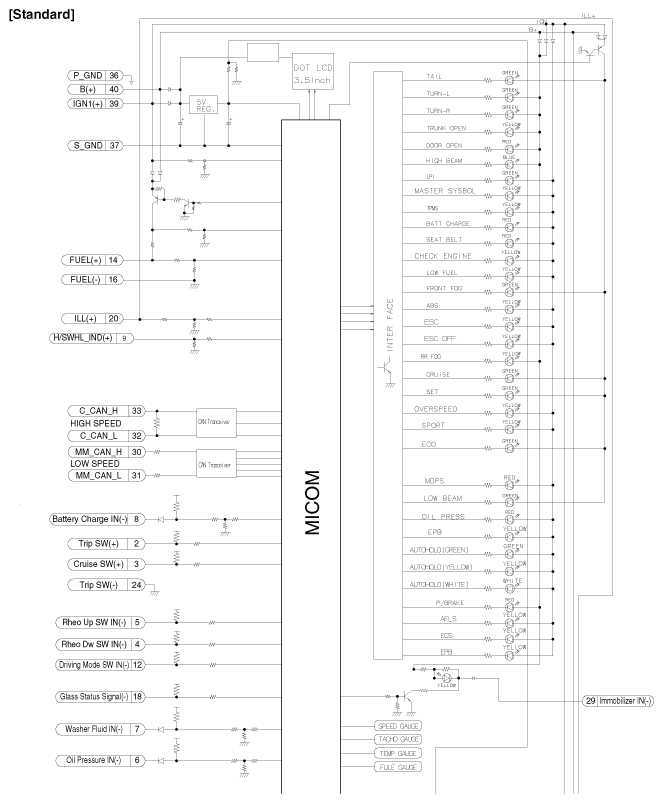

Fig 4: Instrument Cluster Circuit Diagram (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
