Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the LDWS unit cover (A).

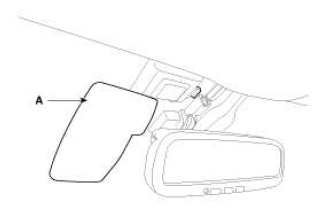

    Fig 1: Locating LDWS Unit Cover
    G11794824Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the LDWS unit connector (A).
    Fig 2: Locating LDWS Unit Connector
    G11794825Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the LDWS unit after widening the mounting clips.

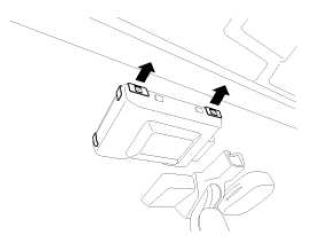

Fig 3: Removing LDWS Unit
G11794826Courtesy of KIA MOTORS AMERICA, INC.
