Component Location

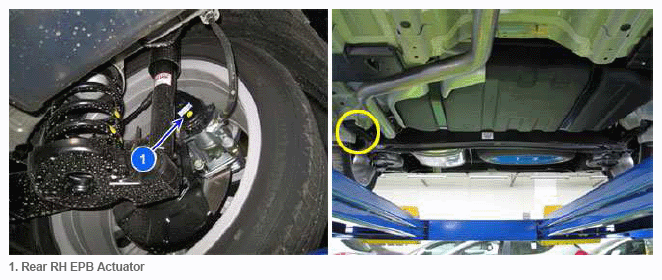

Fig 1: Locating Rear RH EPB Actuator
G11787465Courtesy of KIA MOTORS AMERICA, INC.
