Circuit Diagram

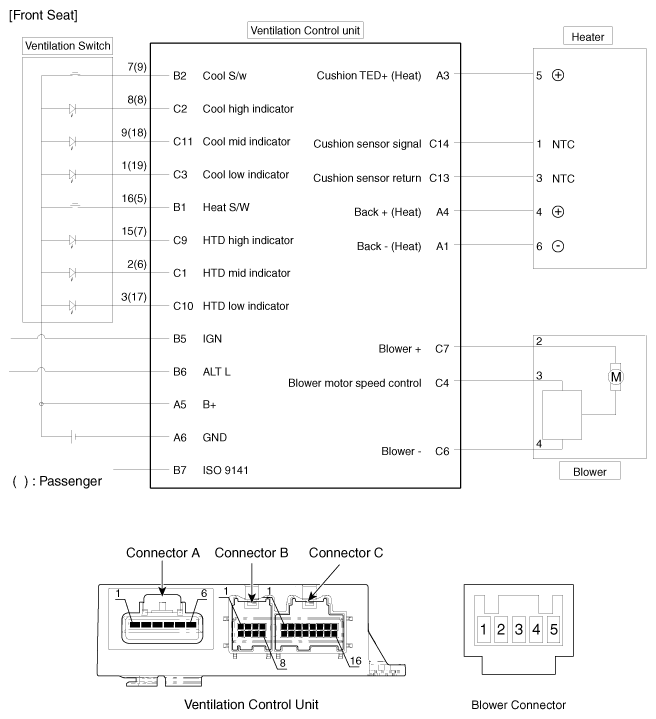

Fig 1: Air Ventilation Seat Schematic And Circuit Diagrams

G11785957

Courtesy of KIA MOTORS AMERICA, INC.
