Burglar Alarm State (B/A State)

B/A State Description
DISARM
  1. In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound and flashing.
  2. If the battery is disconnected while the state is not "ARM/ARMWAIT/ALARM/REARM", B/A state is set to "DISARM" state.
ARMWAIT
  1. In "ARMWAIT" state, when timer "30sec." is running, if this timer reaches "30sec", state transits to "ARM" state.
  2. If the battery is disconnected while the state is "ARMWAIT", B/A state is set to "ARMWAIT" state and timer "30sec" is restarted.

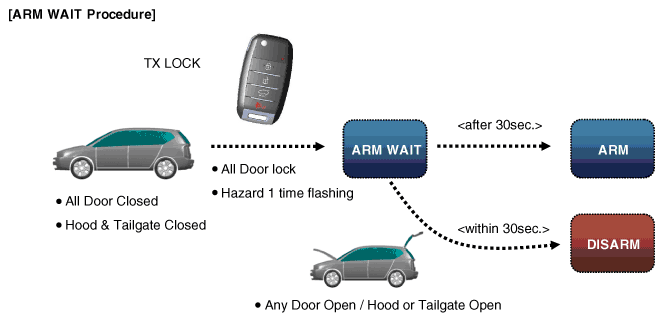

Fig 1: Burglar Alarm Wait Procedure
G11785849Courtesy of KIA MOTORS AMERICA, INC.

Remark: On Smart key system, it works the same way with passive lock

B/A State Description
AUTO LOCK TIMER 1
  1. In "AUTOLOCKTIMER1" state, timer "30sec." is running. If this timer expired, the auto lock command is generated "Lock command".
  2. When "Lock command" operated, All Door changed lock and closed then B/A state changes "AUTOLOCKTIMER1" to "ARMWAIT"
  3. In "AUTOLOCKTIMER1" state, Security Indicator keeps blinking. In "AUTOLOCKTIMER1" state, timer "30sec." is running. If this timer expired, the auto lock command is generated "Lock command". When "Lock command" operated, All Door changed lock and closed then B/A state changes "AUTOLOCKTIMER1" to "ARMWAIT"

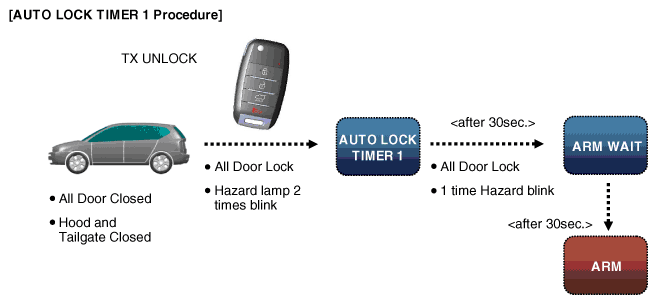

Fig 2: Auto Lock Timer 1 Procedure
G11785850Courtesy of KIA MOTORS AMERICA, INC.

Remark: On Smart key system, it works the same way with passive unlock

B/A State Description
AUTO LOCK TIMER 2
  1. In "AUTOLOCKTIMER2" state, when timer "30sec." is running, if this timer expired, the auto lock command is generated "Lock command".
  2. All doors are Locked, Hood is closed and Tailgate is closed when "Lock command" operated, then B/A state changes to "AUTOLOCKTIMER2" when "Lock Command" generated with Hood open.
  3. When "Unlock command" operated on the condition of All Door closed and Hood open, B/A state changes to "AUTOLOCKTIMER2".

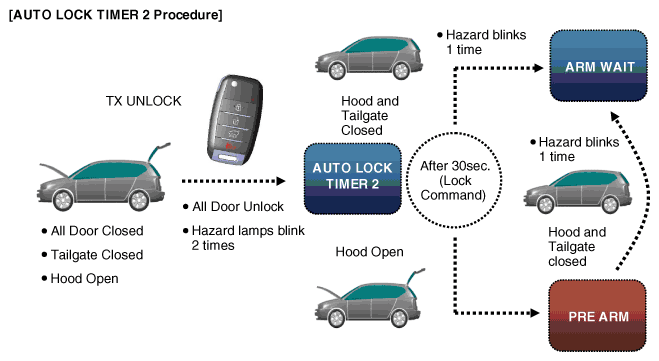

Fig 3: Auto Lock Timer 2 Procedure
G11785851Courtesy of KIA MOTORS AMERICA, INC.

Remark: On Smart key system, it works the same way with passive unlock

B/A State Description
PRE ARM
  1. The "PREARM" state is when user try to change to arm but pre-condition are not satisfied (door open, tailgate open, or hood open).
  2. B/A state changes to "PREARM" when TX Lock command occurs with any door Open, Hood or Tailgate Open.
  3. B/A state changes to "PREARM" when "30sec." timer expired in "AUTOLOCKTIMER2" with Hood or Tailgate Open
  4. The "PREAMR" state changes to "ARM" when all doors closed, All doors locked and Hood and Tailgate closed.
  5. The "PREAMR" state changes to "DISARM" when Any Door Unlock

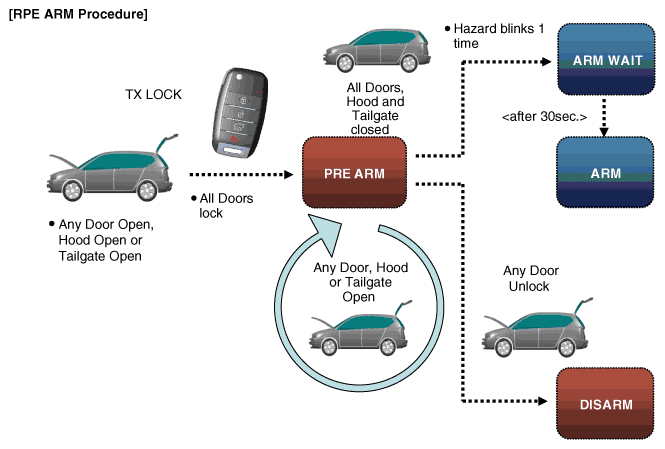

Fig 4: RPE Arm Procedure
G11785852Courtesy of KIA MOTORS AMERICA, INC.
B/A State Description
RE ARM
  1. In "REARM" state, if the vehicle intrusion is detected, flashing and sound is restarted, again and state transits to "ALARM" state.
  2. B/A state changes to "REARM" after the timer "27sec." expires in "ALARM" state with All doors closed and lock.
B/A State Description
AUTOLOCK TIMER3
  1. B/A state changes to "AUTOLOCKTIMER3", when TX-Tailgate command operated.
  2. B/A state changes "AUTOLOCKTIMER3" to "ARMWAIT", when the "30sec." timer expires with all doors lock and closed.
  3. B/A state changes "AUTOLOCKTIMER3" to "DISARM", when any door open.
  4. In "AUTOLOCKTIMER3" state, timer "30sec." timer is running. If this timer expired, state transits to "PREARM" state with Tailgate Open.

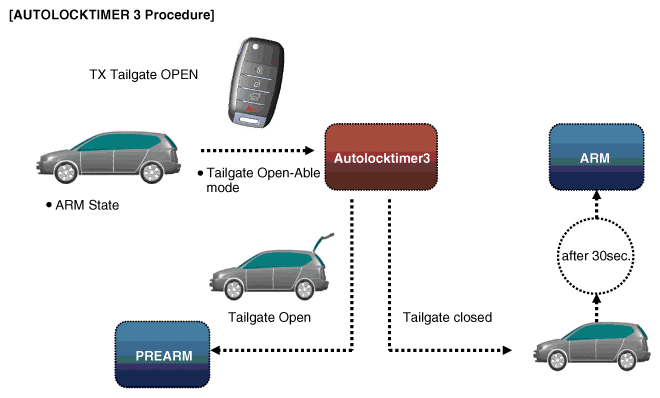

Fig 5: AutoLockTimer 3 Procedure
G11785853Courtesy of KIA MOTORS AMERICA, INC.
