Circuit Diagram

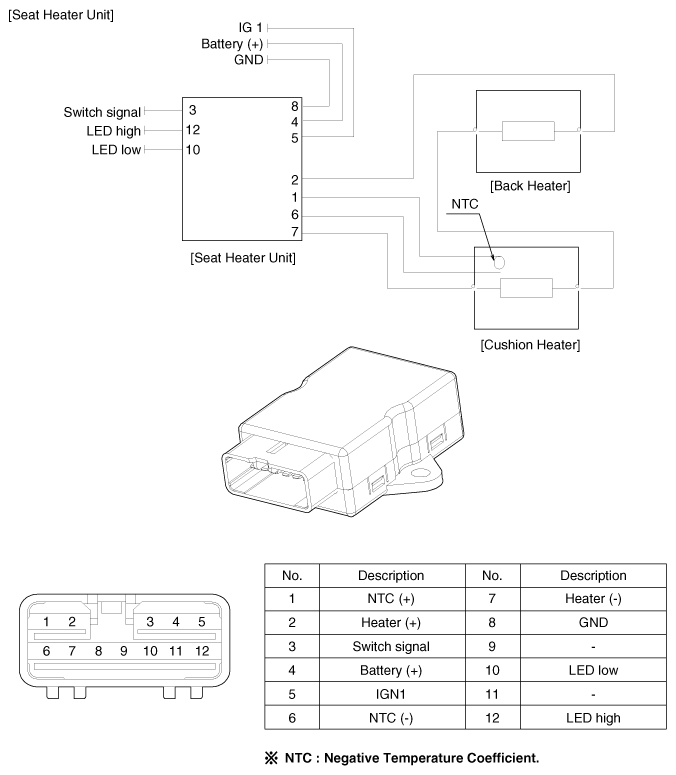

Fig 1: Seat Heater Unit Circuit Diagram

G11785939

Courtesy of KIA MOTORS AMERICA, INC.

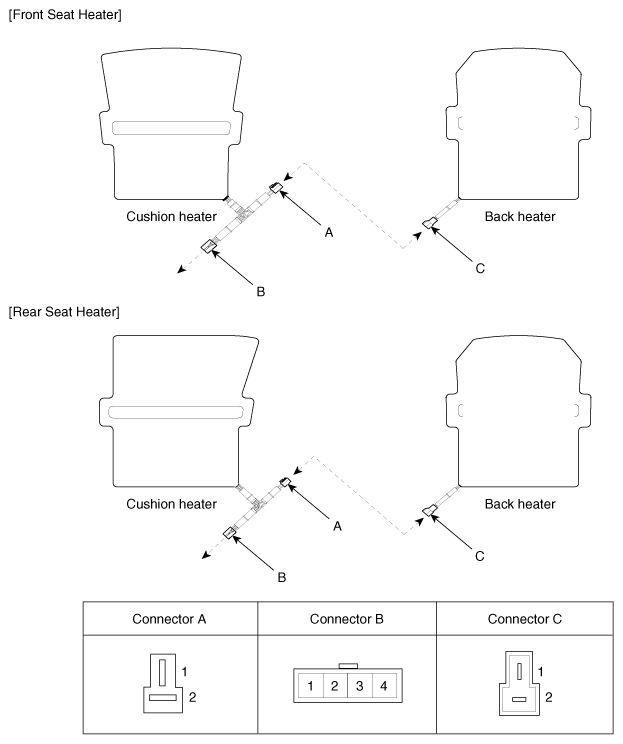

Fig 2: Front And Rear Seat Heater Unit Schematic Diagram

G11785940

Courtesy of KIA MOTORS AMERICA, INC.
