Circuit Diagram

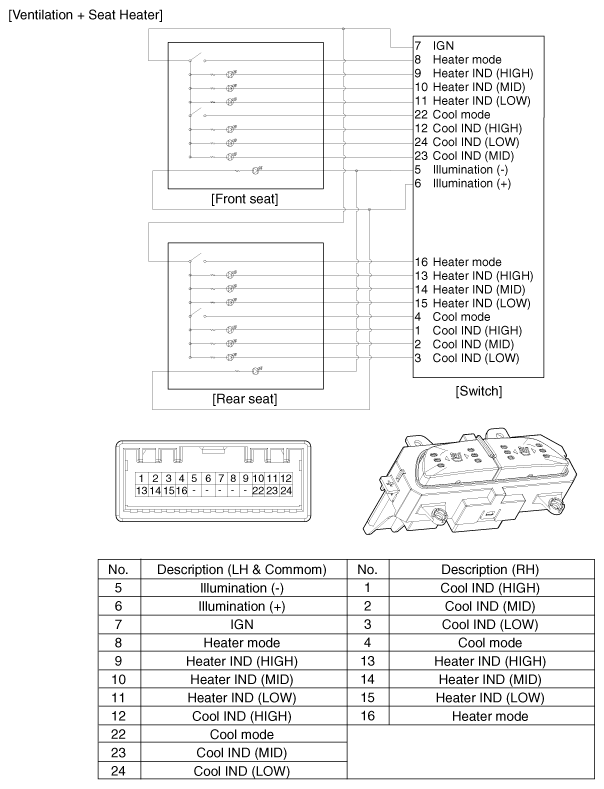

Fig 1: Seat Heater Switch Circuit Diagram - Ventilation And Seat Heater
G11785943Courtesy of KIA MOTORS AMERICA, INC.

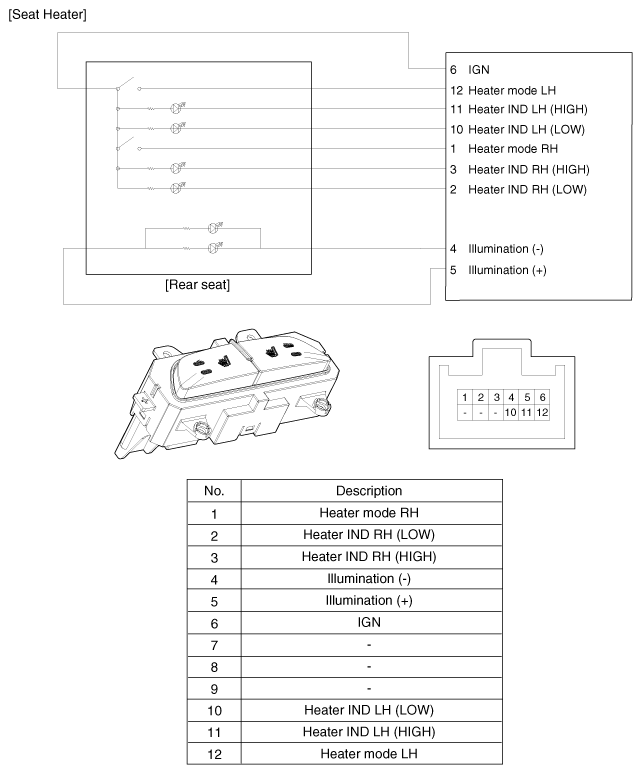

Fig 2: Seat Heater Switch Circuit Diagram - Seat Heater
G11785944Courtesy of KIA MOTORS AMERICA, INC.
