Head Lamp And Fog Lamp Aiming Point

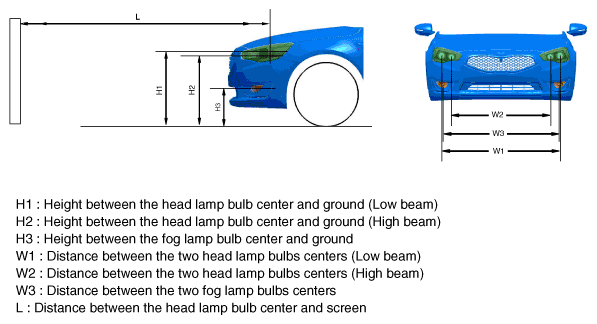

Fig 1: Checking Head Lamp And Fog Lamp Aiming Point

Courtesy of KIA MOTORS AMERICA, INC.

Vehicle condition	H1	H2	H3		W1	W2	W3		L
Vehicle condition	H1	H2	BULB	LED	W1	W2	BULB	LED	L
Without driver	28.3 (719)	27.7 (703)	14.4 (367)	14.3 (365)	57.2 (1, 454)	47.8 (1, 213)	56.2 (1, 428)	56.9 (1, 446)	Refer to aiming condition
With driver	28.0 (712)	27.4 (696)	14.2 (360)	14.1 (358)	57.2 (1, 454)	47.8 (1, 213)	56.2 (1, 428)	56.9 (1, 446)	Refer to aiming condition

General Type (VOR)
- Turn the low beam on without driver aboard.
- The cut-off line should be projected in the allowable range (shaded region) shown in the picture.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
Fig 2: Checking Cut-Off Line Should Projected In Allowable Range
Courtesy of KIA MOTORS AMERICA, INC.
Turn the front fog lamp on with driver seated in the vehicle.
The cut-off line should be projected in the allowable range shown in the picture.

Fig 3: Checking Cut-Off Line Should Projected In Allowable Range
Courtesy of KIA MOTORS AMERICA, INC.
