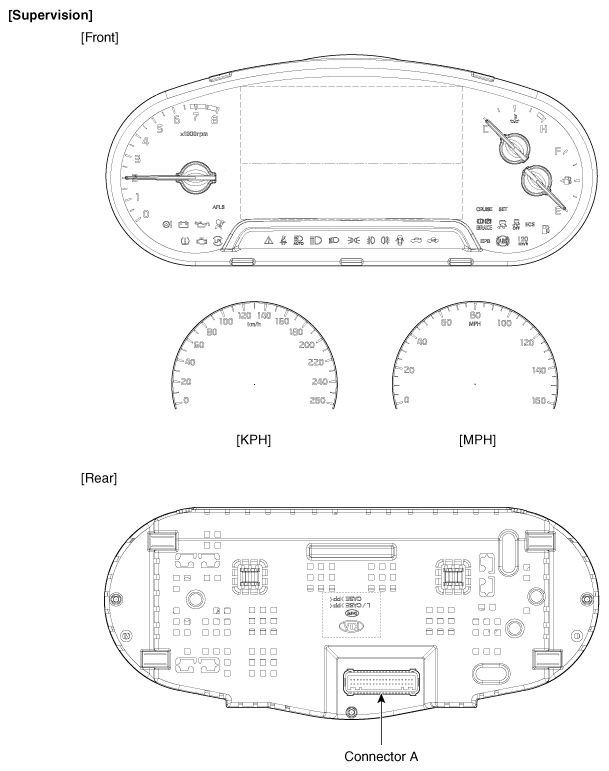

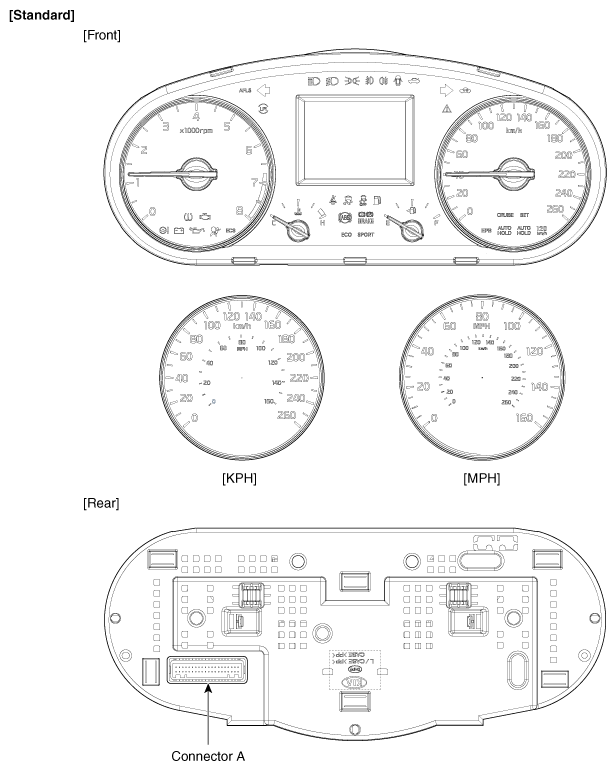

Components and Components Location: Components
INSTRUMENT CLUSTER CONNECTOR PIN INFORMATION
| No. | Description |
|---|---|
| 1 | Air bag (+) |
| 2 | Trip switch (+) |
| 3 | Cruise switch (+) |
| 4 | Rheostat down switch (-) |
| 5 | Rheostat up switch (-) |
| 6 | Oil pressure (-) |
| 7 | Washer indicator (-) |
| 8 | Battery charge (-) |
| 9 | H/SWHL indicator (+) |
| 10 | Brake oil switch (-) |
| 11 | Active ECO switch (-) |
| 12 | Driving mode switch (-) |
| 13 | AT D output (+) |
| 14 | Fuel (+) |
| 15 | AT S output (+) (AT) |
| 16 | Fuel (-) |
| 17 | - |
| 18 | Glass status signal (-) |
| 19 | - |
| 20 | Illumination (+) |
| 21 | Aig bag (-) |
| 22 | Speaker output (+) |
| 23 | Speaker output (-) |
| 24 | Trip switch (-) |
| 25 | VS 4P output (-) |
| 26 | AT R output (+) |
| 27 | AT P output (+) |
| 28 | Detent output (+) |
| 29 | Immobilizer (-) |
| 30 | MM CAN high |
| 31 | MM CAN low |
| 32 | C CAN low |
| 33 | C CAN high |
| 34 | AT N output (+) |
| 35 | Illumination (-) |
| 36 | P ground |
| 37 | S ground |
| 38 | - |
| 39 | IGN 1 (+) |
| 40 | Battery (+) |
