Lane Departure Warning

This lane Departure Warning Algorithm is for HKMC whole vehicle that will apply to LDWS

1. Lane departure warning start speed: 70KPH
   1. Warning Start Speed: 70KPH
   2. Warning Stop Speed: 65KPH

   To prevent repetition of system warning on and off according to vehicle speed variation, This specification establish warning stop speed as 55 KPH for hysteresis characteristic.

2. Warning Method
   1. Warning Device

      Cluster, Buzzer

   2. Cluster Display Symbols

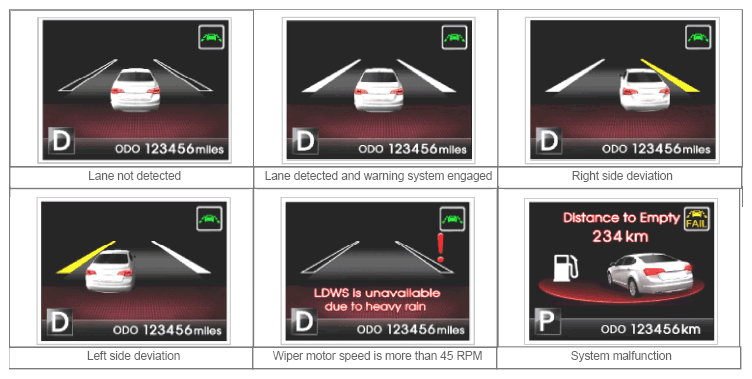

   Fig 1: Screen Display - Lane Departure Warning

   Courtesy of KIA MOTORS AMERICA, INC.

   * Display symbol and period vary according to vehicle's LCD and alarm.

   (It is possible to adjust blinking period.)
