Kia
>>
2015
>>
Soul EV Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Indicators & Gauges
>>
Instrument Cluster
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

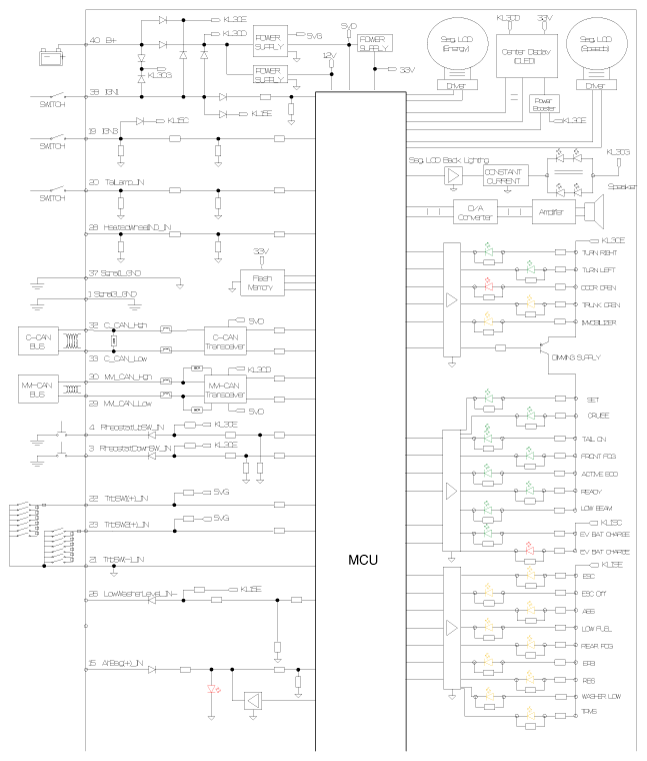

Fig 1: Indicators And Gauges Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

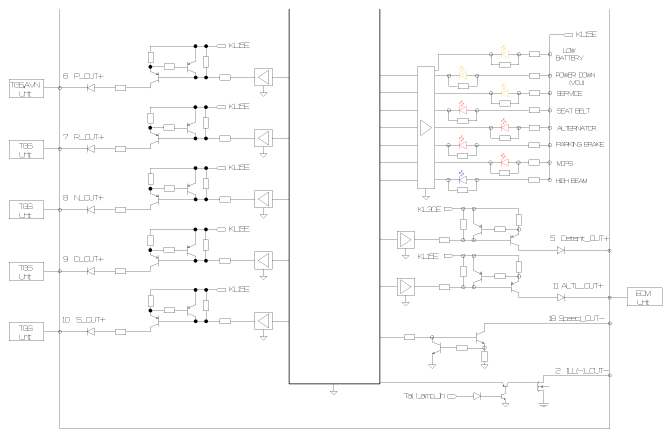

Fig 2: Indicators And Gauges Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
