Mian Features
- Power and charge gage
- It displays the degree of economic driving by identifying the status of a driver's operation, depending on a vehicle's driving conditions (e.g., required power, system efficiency and charging).
- It leads to economic driving by informing the driver of the optimal driving conditions depending on the vehicle's conditions.
- It displays that ECO guide and power segment will operate during driving, and also indicates the state of regenerative braking when a charge zone is instructed while driving.
- SOC (State Of Charge) gage
- It displays the amount of charge of high-voltage battery.
- It displays the charged amount of SOC received from BMS module on the digital gauge in the instrument cluster (as follows).
Display Increase (%) Decrease (%) Seg0 0 0 Seg1 5 3 Seg2 10 8 Seg3 15 13 Seg4 20 18 Seg5 25 23 Seg6 30 28 Seg7 35 33 Seg8 40 38 Seg9 45 43 Seg10 50 48 Seg11 55 53 Seg12 60 58 Seg13 65 63 Seg14 70 68 Seg15 75 73 Seg16 80 78 Seg17 85 83 Seg18 90 88 - ECO Level Display

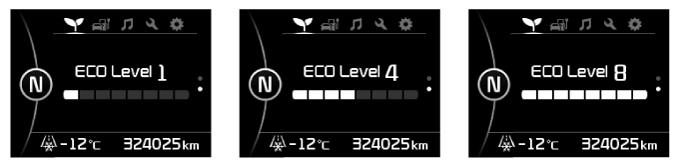

- It displays the degree of the driver's economic driving via ECO level.
- It displays the ECO level in OLED from Steps 1 to 8.
- Energy Flow
Graphic Function Vehicle stop status Motor being driven with battery power Charged with regenerative energy from the motor - It displays graphical energy flow of an EV vehicle to inform the driver of the vehicle information.
- It leads to economic driving by showing the energy flow diagram by means of intuitive images.
- It displays three states of energy flow of the EV vehicle graphically.
- VCU module receives operation mode CAN signals to implement any relevant animation.

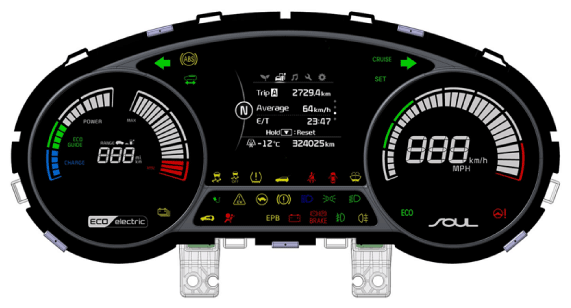

- Other indicators and warning lamps
The status between C-CAN transmission modules, operating various indicator and warning lamps on the PS EV cluster, is shown. Referring to the following descriptions, any checking point or operating point can be identified in the event of in operation of relevant function.
