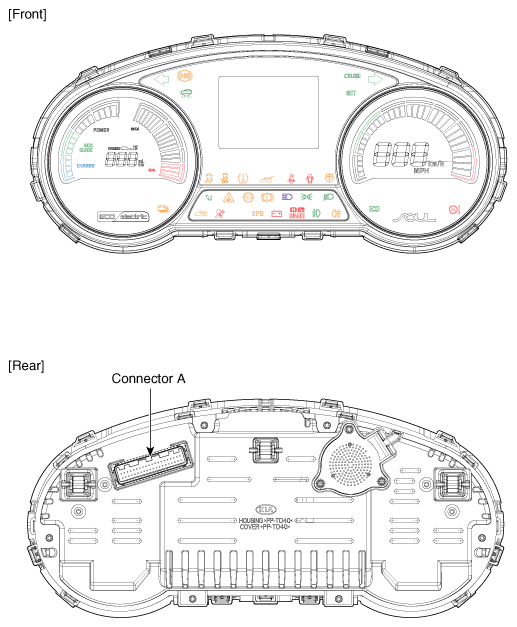

Components And Components Location: Components
CONNECTOR PIN INFORMATION
| No. | Description | No. | Description |
|---|---|---|---|
| 1 | Ground signal 3 (Power ground) | 21 | Trip switch (-) input |
| 2 | Illumination output (-) | 22 | Trip switch 1 (+) input (Trip button) |
| 3 | Rheostat switch down input | 23 | Trip switch 2 (+) input (Cruise button) |
| 4 | Rheostat switch up input | 24 | - |
| 5 | Detent output (+) | 25 | - |
| 6 | P output (+) (A/T) | 26 | Low washer level input (-) |
| 7 | R output (+) (A/T) | 27 | - |
| 8 | N output (+) (A/T) | 28 | Heated wheel indicator input |
| 9 | D output (+) (A/T) | 29 | M CAN low |
| 10 | S output (+) (A/T) | 30 | M CAN high |
| 11 | ALT L output | 31 | - |
| 12 | - | 32 | C CAN high |
| 13 | - | 33 | C CAN low |
| 14 | - | 34 | - |
| 15 | Airbag (+) input | 35 | - |
| 16 | - | 36 | - |
| 17 | - | 37 | Ground signal 1 |
| 18 | Speed output (4P output) | 38 | - |
| 19 | IGN 3 | 39 | IGN 1 |
| 20 | Tail lamp input (Illumination (+)) | 40 | Battery (+) |
