Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to "CLUSTER FASCIA PANEL ")

  3. Remove the cluster (A) after removing screws.

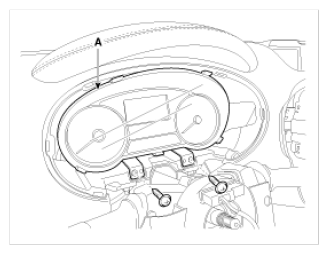

    Fig 1: Cluster
    G09782481Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the cluster connector (A) from the cluster.

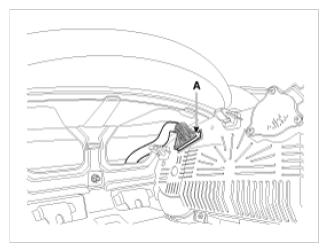

    Fig 2: Cluster Connector
    G09782482Courtesy of KIA MOTORS AMERICA, INC.
