Repair Procedures: Replacement: [RH]

  1. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

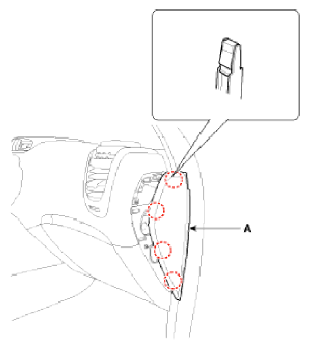

    Fig 1: Crash Pad Side Cover & Clip Locations (RH)
    G09773663Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.

    Information

    • Replace any damaged clips.
