Power Outside Mirror Switch Connector End View (D12)

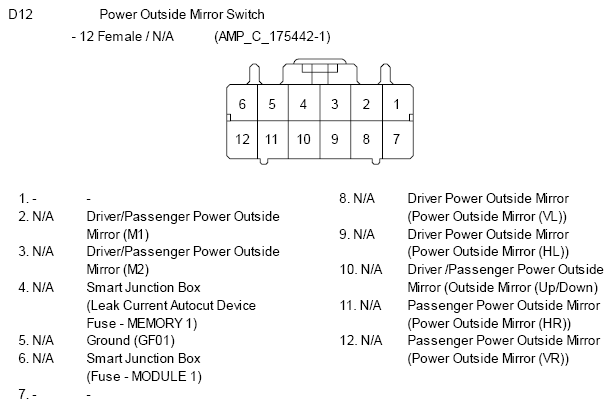

Fig 1: Power Outside Mirror Switch Connector End View (D12)

G10810537

Courtesy of KIA MOTORS AMERICA, INC.
