Multifunction Switch Connector End View (M01-W)

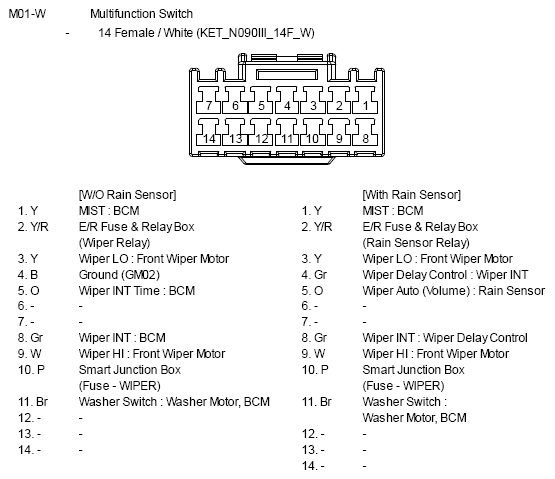

Fig 1: Multifunction Switch Connector End View (M01-W)

G10809176

Courtesy of KIA MOTORS AMERICA, INC.
