Head Lamp LH (Extension Harness) Connector End View (E05)

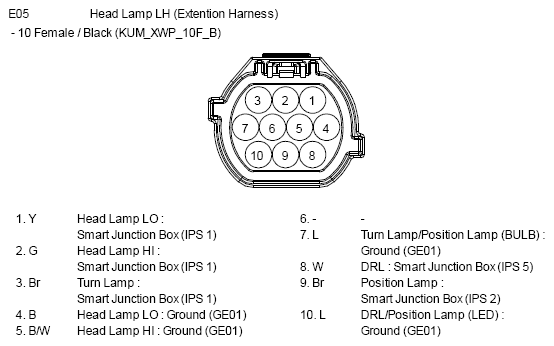

Fig 1: Head Lamp LH (Extension Harness) Connector End View (E05)

G10809636

Courtesy of KIA MOTORS AMERICA, INC.
