Power Window Main Switch (With Passenger Safety) Connector End View (D08)

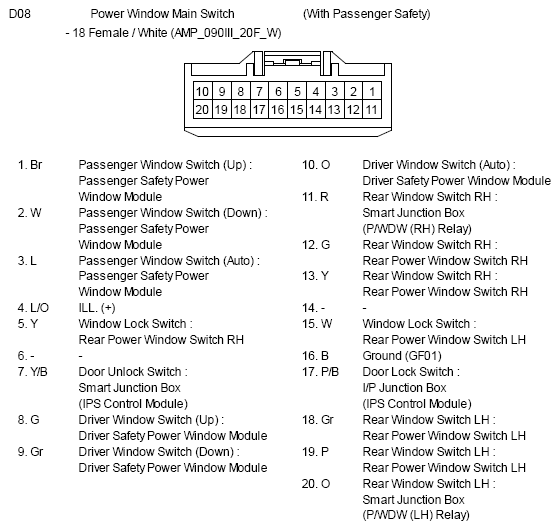

Fig 1: Power Window Main Switch (With Passenger Safety) Connector End View (D08)

G10810157

Courtesy of KIA MOTORS AMERICA, INC.
