Rear Power Window Switch RH (With Seat Warmer) Connector End View (D58)

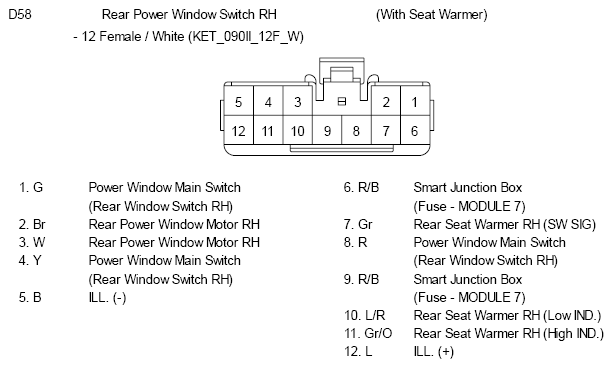

Fig 1: Rear Power Window Switch RH (With Seat Warmer) Connector End View (D58)

G10810560

Courtesy of KIA MOTORS AMERICA, INC.
