Driver Seat Manual Switch Connector End View (S01)

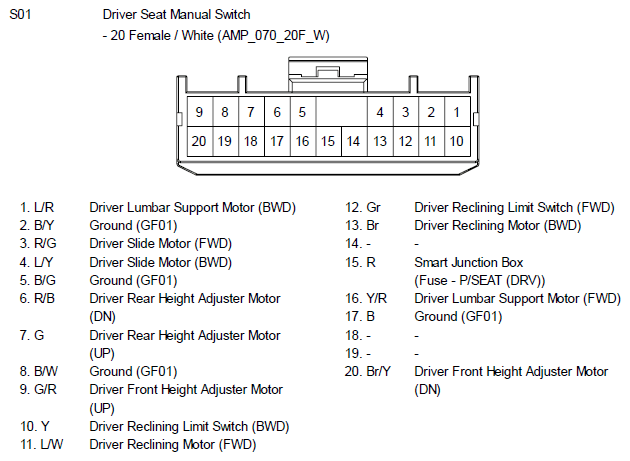

Fig 1: Driver Seat Manual Switch Connector End View (S01)

G10810976

Courtesy of KIA MOTORS AMERICA, INC.
