Rear Combination Lamp (OUT) LH Connector End View (F29)

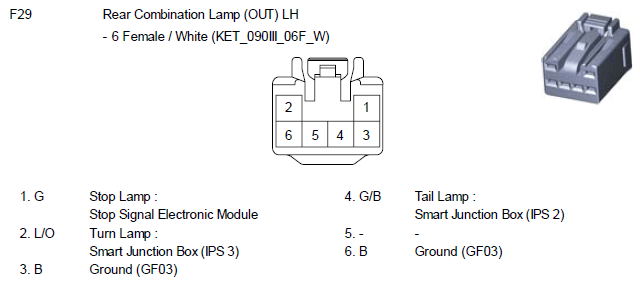

Fig 1: Rear Combination Lamp (OUT) LH Connector End View (F29)

G10810872

Courtesy of KIA MOTORS AMERICA, INC.
