Home >> Kia >> 2015 >> Optima Hybrid >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Connector End Views (Door Harness) -- Optima HEV >> Connector End Views >> Rear Power Window Switch LH (With Seat Warmer) Connector End View (D48)

Rear Power Window Switch LH (With Seat Warmer) Connector End View (D48)

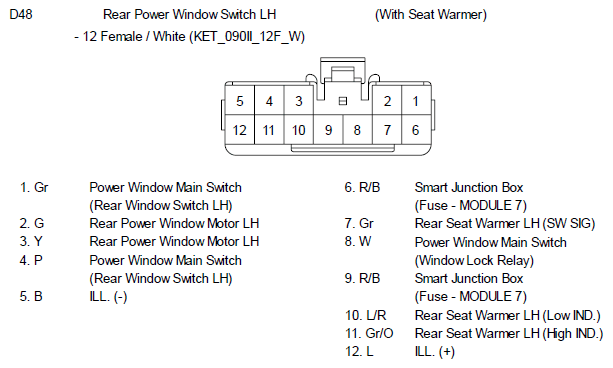

Fig 1: Rear Power Window Switch LH (With Seat Warmer) Connector End View (D48)

G10810950

Courtesy of KIA MOTORS AMERICA, INC.
