Power Window Main Switch (With Passenger Safety) Connector End View (D05)

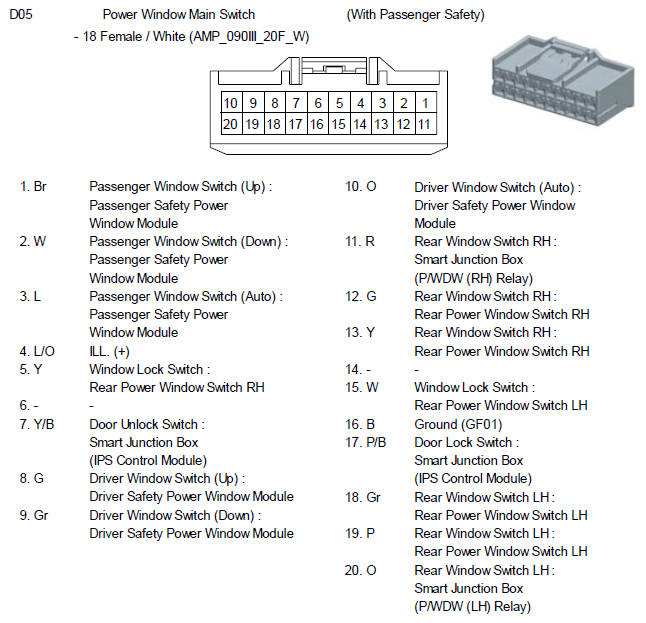

Fig 1: Power Window Main Switch (With Passenger Safety) Connector End View (D05)

G10810929

Courtesy of KIA MOTORS AMERICA, INC.
