Passenger Power Window Switch (With Passenger Safety Power) Connector End View (D25)

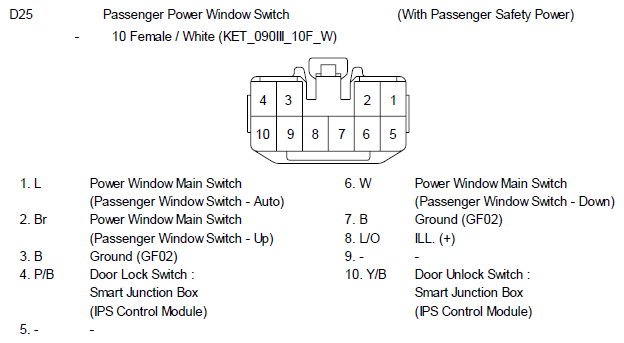

Fig 1: Passenger Power Window Switch (With Passenger Safety Power) Connector End View (D25)
G10810940Courtesy of KIA MOTORS AMERICA, INC.
