Monitor GDS Data

  1. Connect Data Link Connector (DLC) to GDS.
  2. Check "Diagnostic Trouble Codes (DTC)" about engine using GDS.

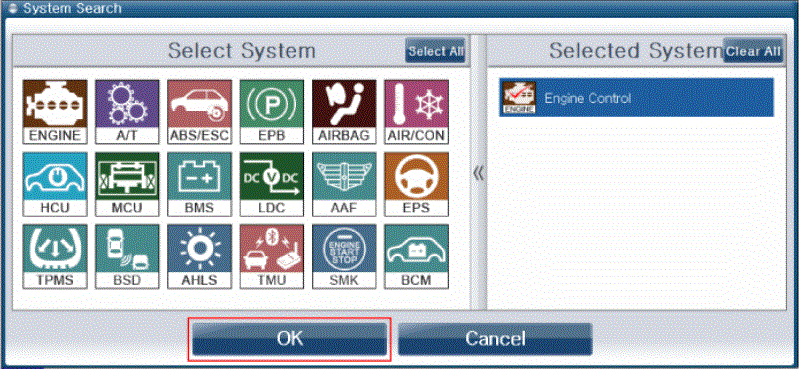

    Fig 1: Select System Screen - Engine Control
    G00549234Courtesy of KIA MOTORS AMERICA, INC.
  3. Engine system about related DTC exist?

    YES

    • Repair according to DTC diagnostic guide of engine system.

    NO
