Calibration Procedure

  1. Connect the GDS. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the pressure sensor.
  4. Pressure sensor calibration procedure is performed. (Calibration records, DTC codes erasure)

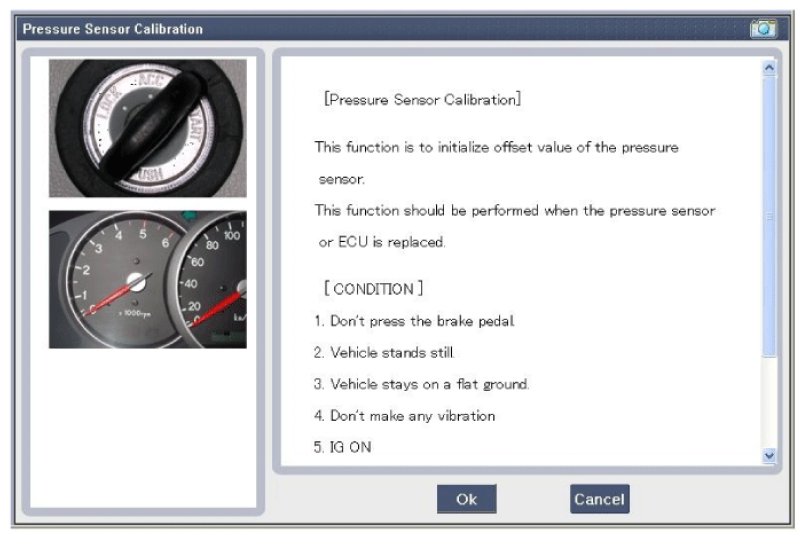

    Fig 1: Screen Display - HPU Pressure Sensor Calibration
    G08308674Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn ignition switch off and on after calibration procedure.
  6. Confirm success of calibration.
