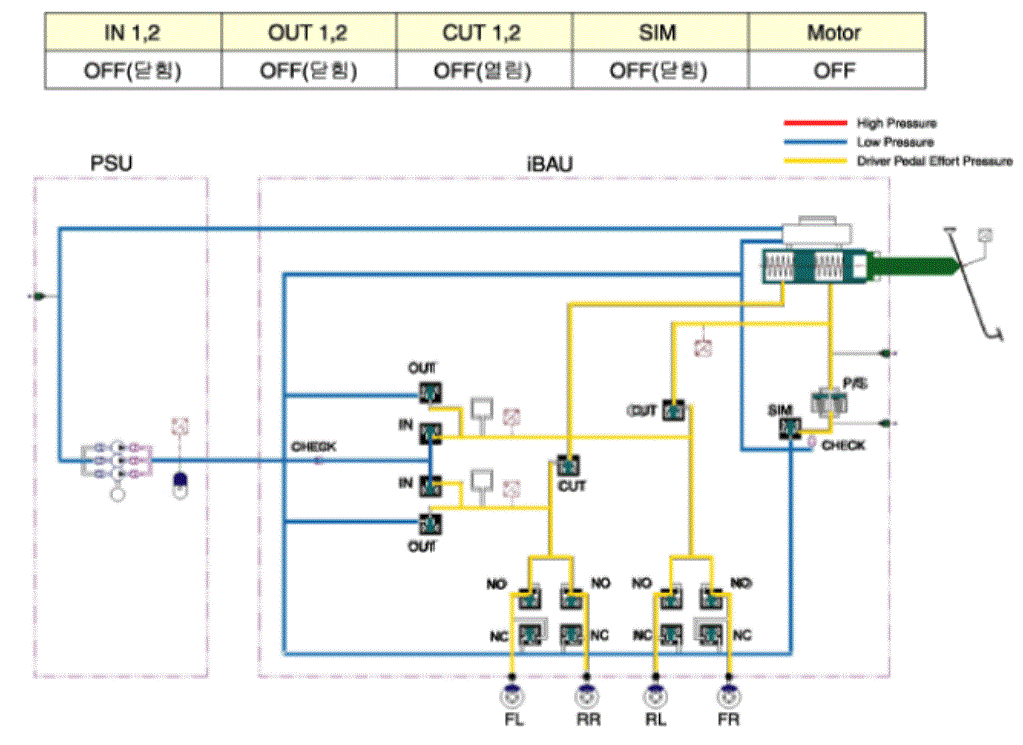

Fig 1: AHB System Operation Diagram - Brake Malfunction
Courtesy of KIA MOTORS AMERICA, INC.
If the PSU or the IBAU is broken, IN valve and OUT valve are closed, and CUT valve is off. Therefore, the brake force is generated by only pressing a brake pedal manually by a driver.
