Components And Components Location: Components

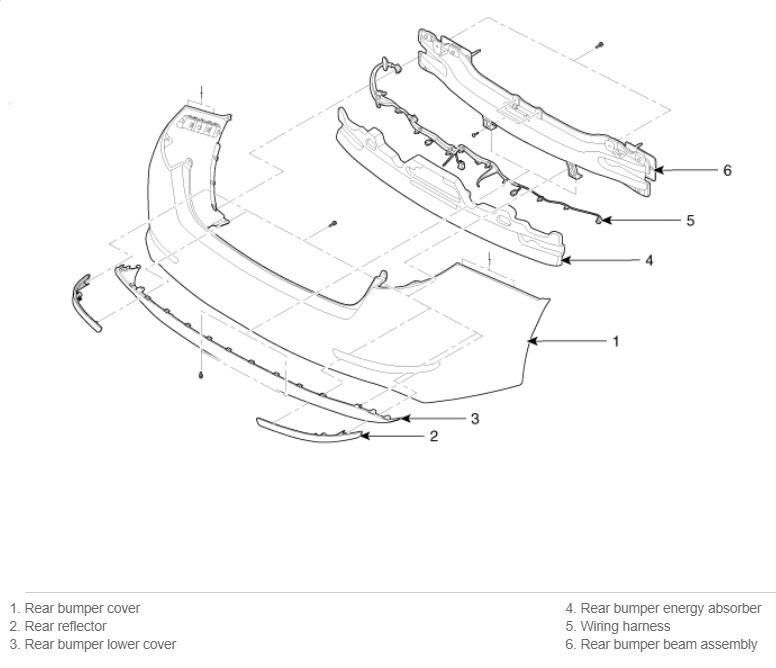

Fig 1: Rear Bumper Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

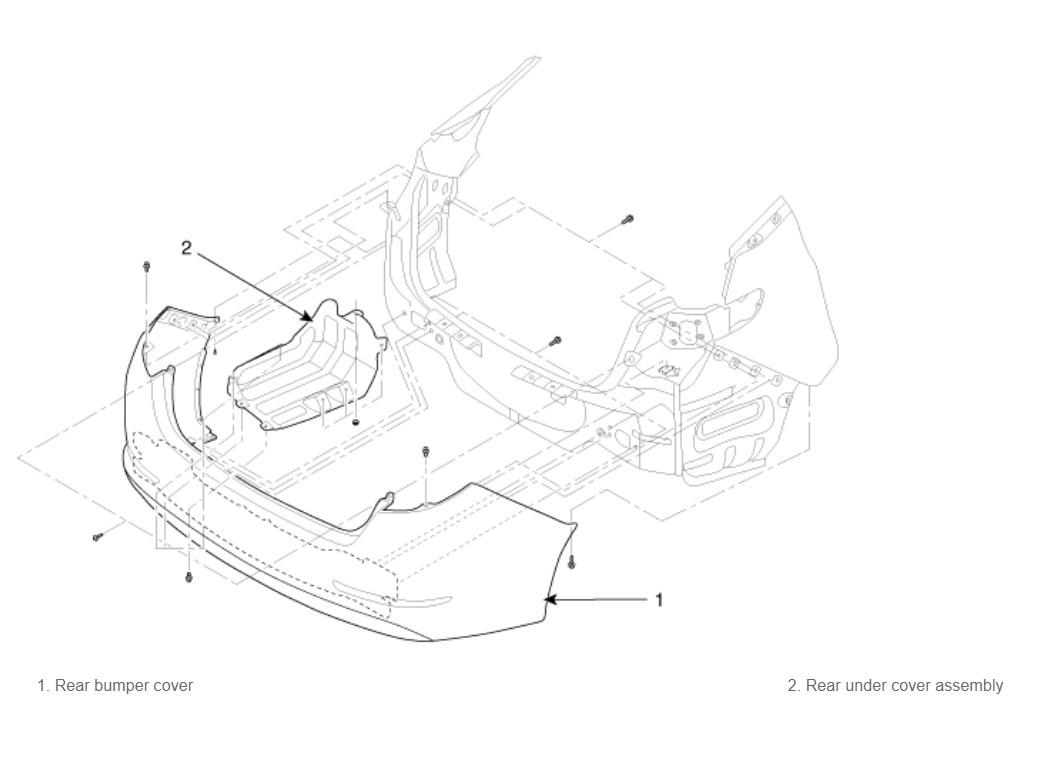

Fig 2: Rear Bumper Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
