Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the cover and other parts.

After loosening the mounting bolts and clips, then remove the radiator grill upper cover (A).

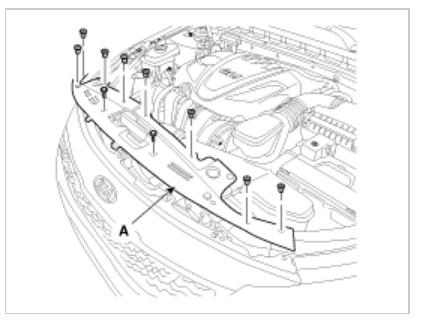

Fig 1: Engine Air Duct & Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the front bumper side mounting screw, disconnect the side.

Fig 2: Radiator Grill Upper Cover & Mounting Clips
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper by pulling up the side of the front bumper and then pull it out.

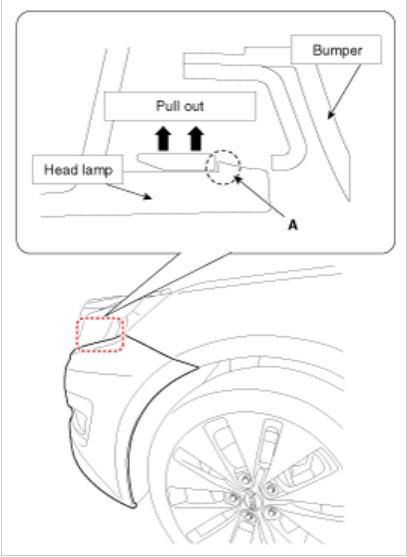

CAUTION: When you pull out the front bumper, the side part of the front bumper could be damaged by the projection (A)

Fig 3: Front Bumper Side Mounting Clips & Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper lower mounting clips.

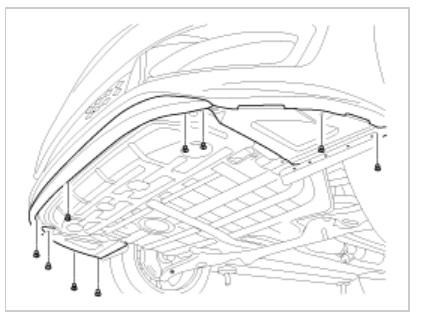

Fig 4: Front Bumper Lower Mounting Clips
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fog lamp connectors (A).

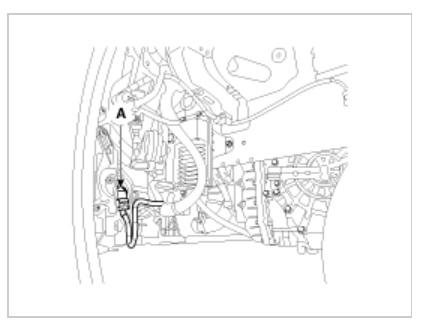

Fig 5: Fog Lamp Connectors (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
