Components And Components Location: Components

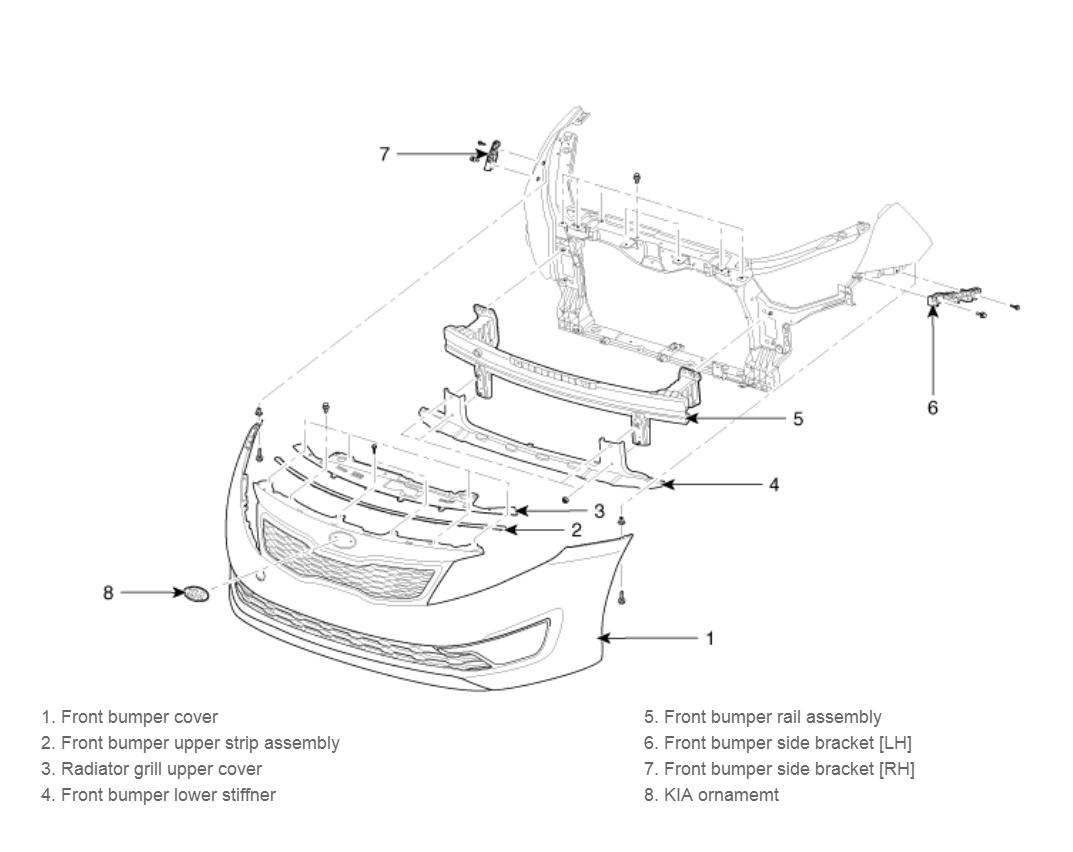

Fig 1: Exploded View Of Front Bumper (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

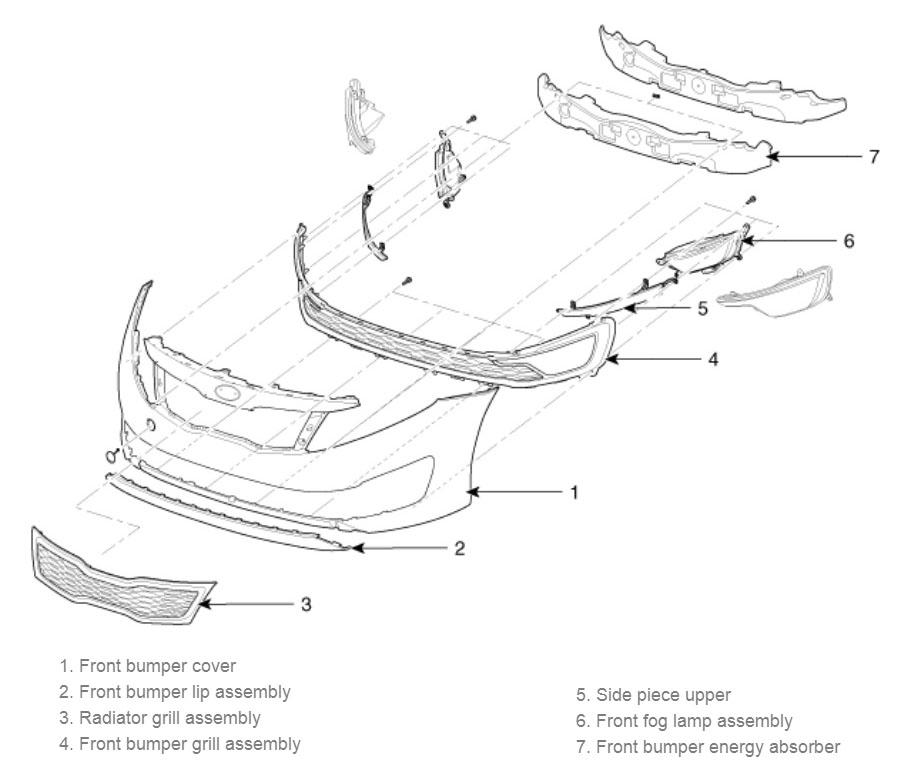

Fig 2: Exploded View Of Front Bumper (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
