Side Sill Molding Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Loosen the mounting screws.
  2. Using a screwdriver or remover, remove the side sill molding (A).
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips

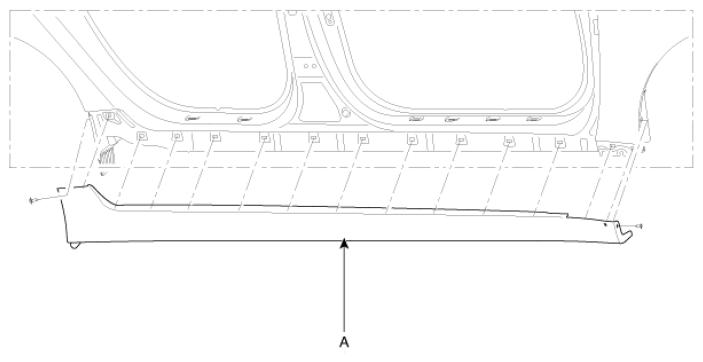

    Fig 1: Identifying Side Sill Molding
    G08312993Courtesy of KIA MOTORS AMERICA, INC.
