Repair Procedures: Removal

CAUTION:

Remove the following items.
- Roof molding
  (Refer to -"PANORAMAROOF ")
- Rear seat
  (Refer to the "REAR SEAT ")
- Rear pillar trim
  (Refer to -"INTERIOR TRIM ")
- Package tray trim
  (Refer to -"INTERIOR TRIM ")
- Rear window glass heater connector
  (Refer to REAR GLASS DEFOGGER SWITCH .
Spread the WD-40 on the side of rear window glass.

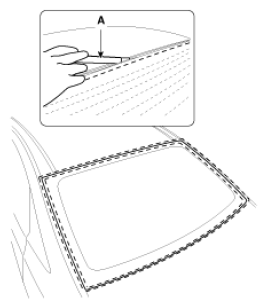

Cut out the adhesive using the cutter (A).
NOTE:
- Please use the cutter with a blade length between 8-12 inches.
Fig 1: Cutting Adhesive Using Cutter
Courtesy of KIA MOTORS AMERICA, INC.

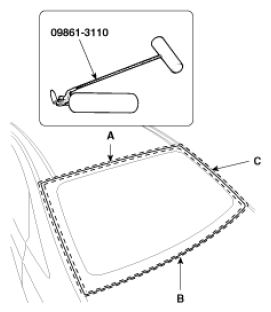

Enough on the upper (A) and lower (B) side (C) of rear window glass. and then cut out the adhesive using the cutter tool (09861-31100).

Fig 2: Cutting Adhesive From Rear Window Glass Using Cutter Tool (09861-31100)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear window glass (A).
NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
Fig 3: Removing Rear Window Glass
Courtesy of KIA MOTORS AMERICA, INC.
