Crash Pad Lower Panel Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the crash pad lower panel (A).

Fig 2: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

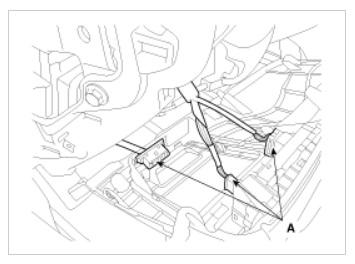

Disconnect the crash pad lower switch connectors (A), diagnosis connector (B), crash pad under lamp connector (C).
[LH]

Fig 3: Identifying Cluster Connectors (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 4: Identifying Crash Pad Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
