Indicators & Gauges - Optima HEV
>>
Trip Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

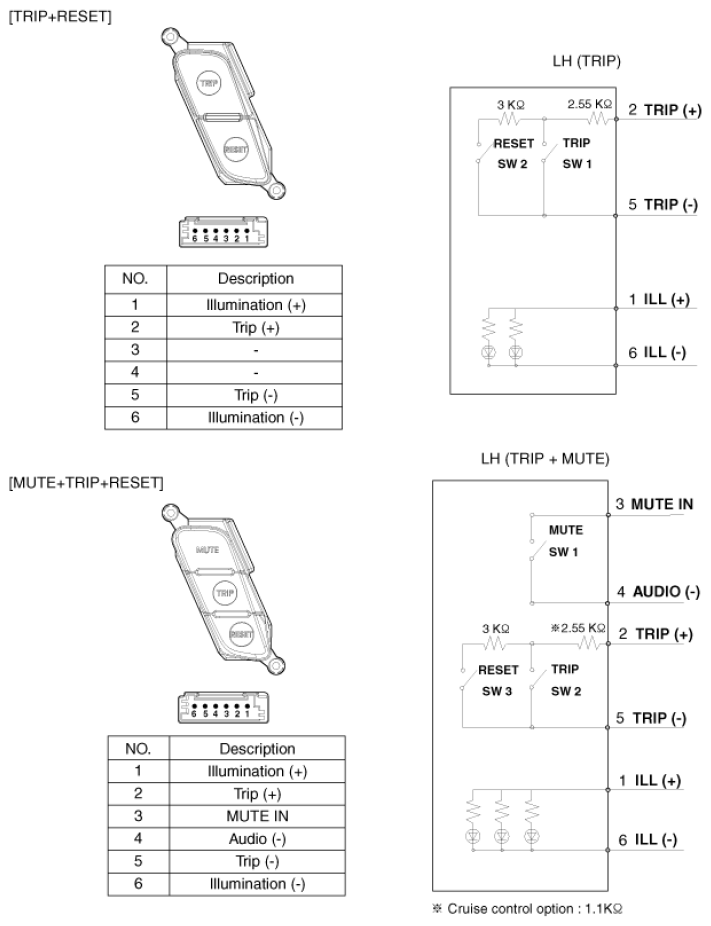

Fig 1: Trip Switch Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

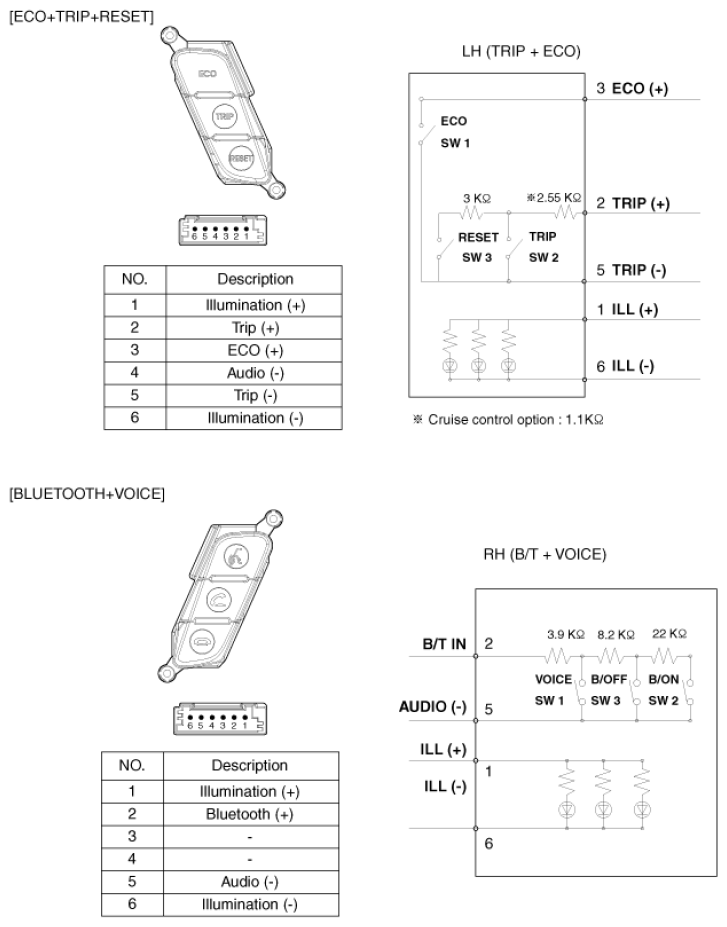

Fig 2: Trip Switch Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
