Circuit Diagram

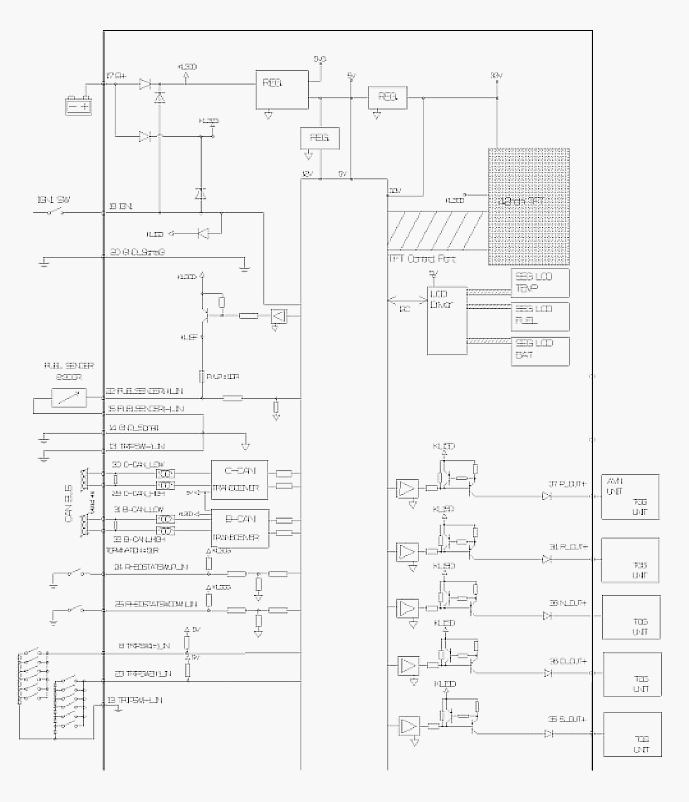

Fig 1: Cluster Network Circuit Diagram (1 Of 3)
G00548206Courtesy of KIA MOTORS AMERICA, INC.

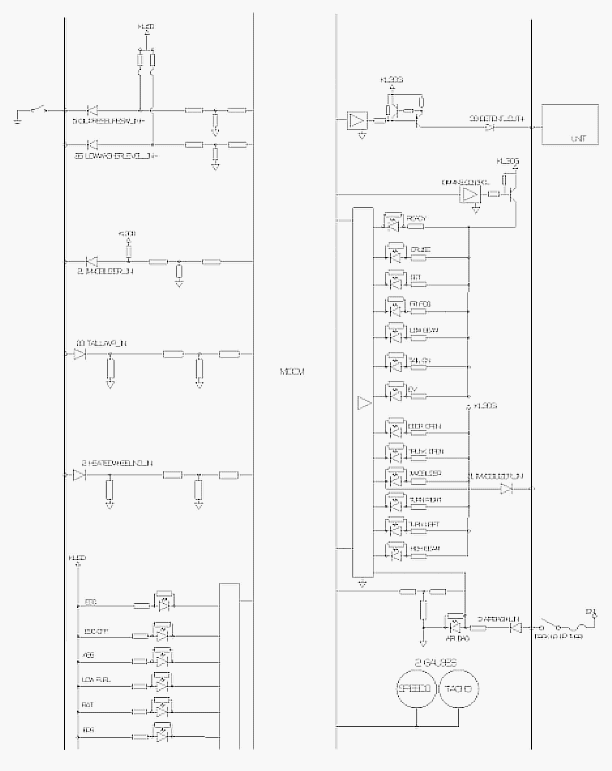

Fig 2: Cluster Network Circuit Diagram (2 Of 3)
G00548207Courtesy of KIA MOTORS AMERICA, INC.

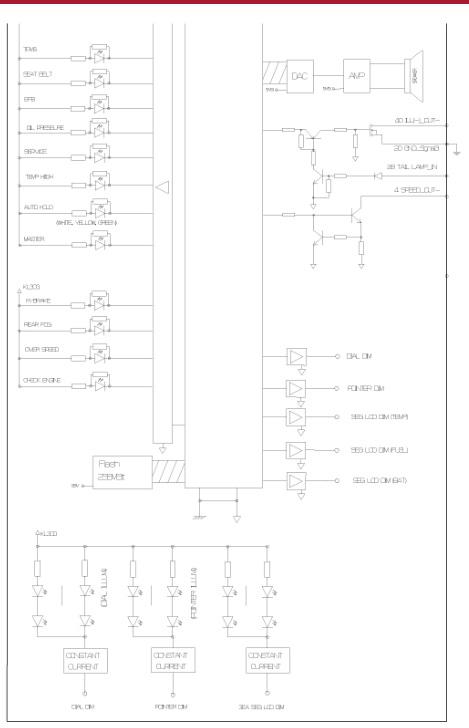

Fig 3: Cluster Network Circuit Diagram (3 Of 3)
G00569812Courtesy of KIA MOTORS AMERICA, INC.
