Seat Belt Switch

  1. Remove the connector from the switch.
  2. Check for continuity between terminals.
Seat belt condition Continuity
Fastened Non-conductive (∞Ω)
Not fastened Conductive (Ω)

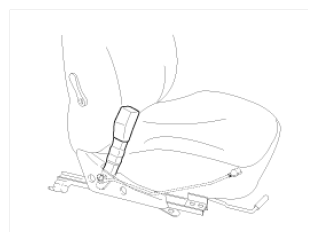

Fig 1: Identifying Seat Belt Switch
G08309343Courtesy of KIA MOTORS AMERICA, INC.
