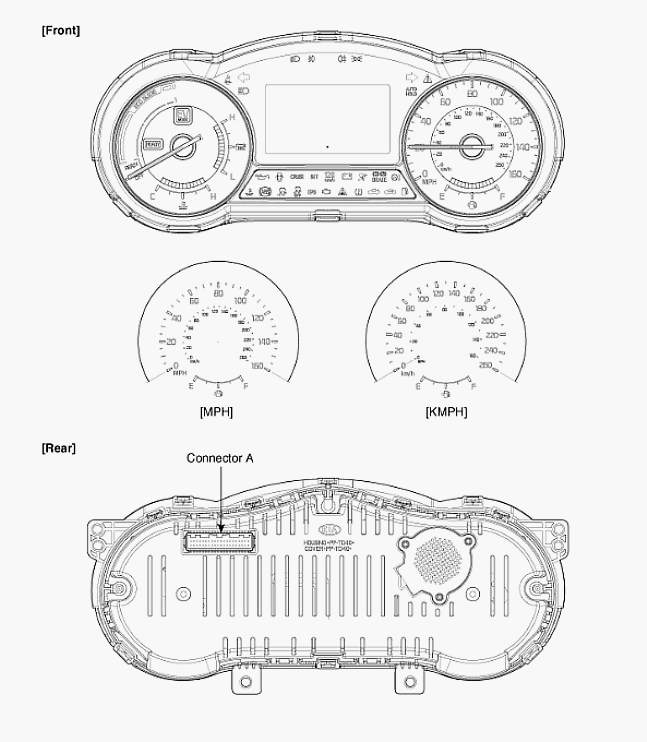

Components And Components Location: Components

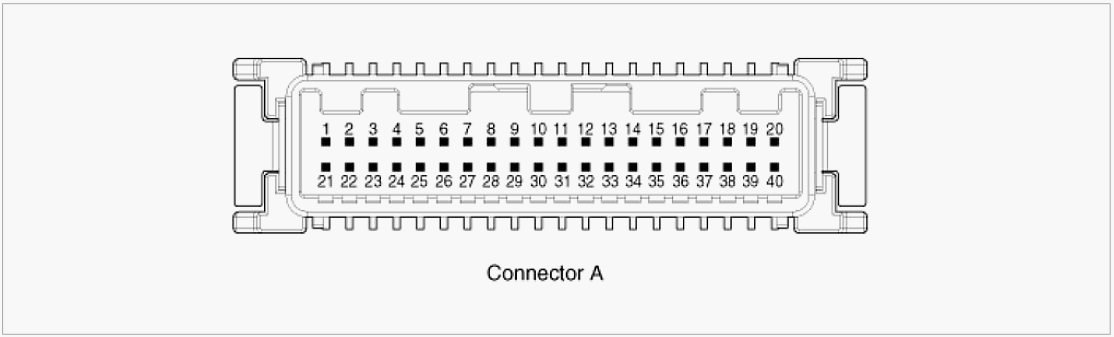

CONNECTOR PIN INFORMATION
| No. | Description | No. | Description |
| 1 | - | 21 | Immobilizer input |
| 2 | Heated wheel indicator input | 22 | Fuel sensor (+) input |
| 3 | Air bag (+) input | 23 | Trip switch 2 (+) input (Trip button) |
| 4 | Speed output (-) (4P output) | 24 | Rheostat switch up input |
| 5 | Oil pressure switch input (-) | 25 | Rheostat switch down input |
| 6 | - | 26 | Low washer level input (-) |
| 7 | - | 27 | - |
| 8 | Trip switch 1 (+) input (Cruise button) |
28 | Tail lamp input (Illumination (+)) |
| 9 | - | 29 | C CAN High |
| 10 | - | 30 | C CAN Low |
| 11 | - | 31 | B CAN Low |
| 12 | - | 32 | B CAN High |
| 13 | Trip switch (-) input | 33 | - |
| 14 | Signal 1 ground | 34 | AT R position output (+) |
| 15 | Fuel sensor (-) input | 35 | AT S position output (+) |
| 16 | - | 36 | AT D position output (+) |
| 17 | Battery (+) | 37 | AT P position output (+) |
| 18 | IGN1 | 38 | AT N position output (+) |
| 19 | - | 39 | Detent output (+) |
| 20 | Signal 3 ground | 40 | Illumination (-) output |
