Hood Lift Replacement

  1. Using a screwdriver (A), lift the socket clips (B) up slightly on both ends of the lifter (C), and then remove the lifter from the bracket (D).

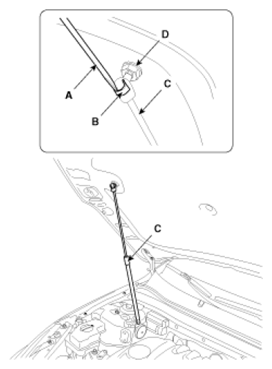

    Fig 1: Lifting Socket Clips
    G07380164Courtesy of KIA MOTORS AMERICA, INC.
  2. Installation is the reverse of removal.
