Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to "CLUSTER FASCIA PANEL ")

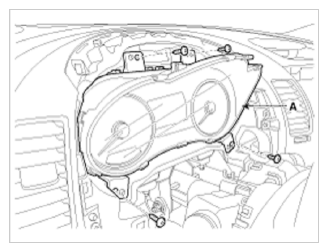

  3. Remove the cluster (A) from the housing after removing 4 screws.
    Fig 1: Cluster
    G09744332Courtesy of KIA MOTORS AMERICA, INC.

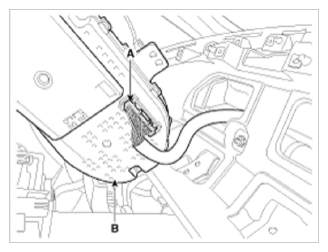

  4. Disconnect the cluster connector (A) and then remove the cluster (B).
    Fig 2: Cluster & Connector
    G09744333Courtesy of KIA MOTORS AMERICA, INC.
