Components and Components Location: Components

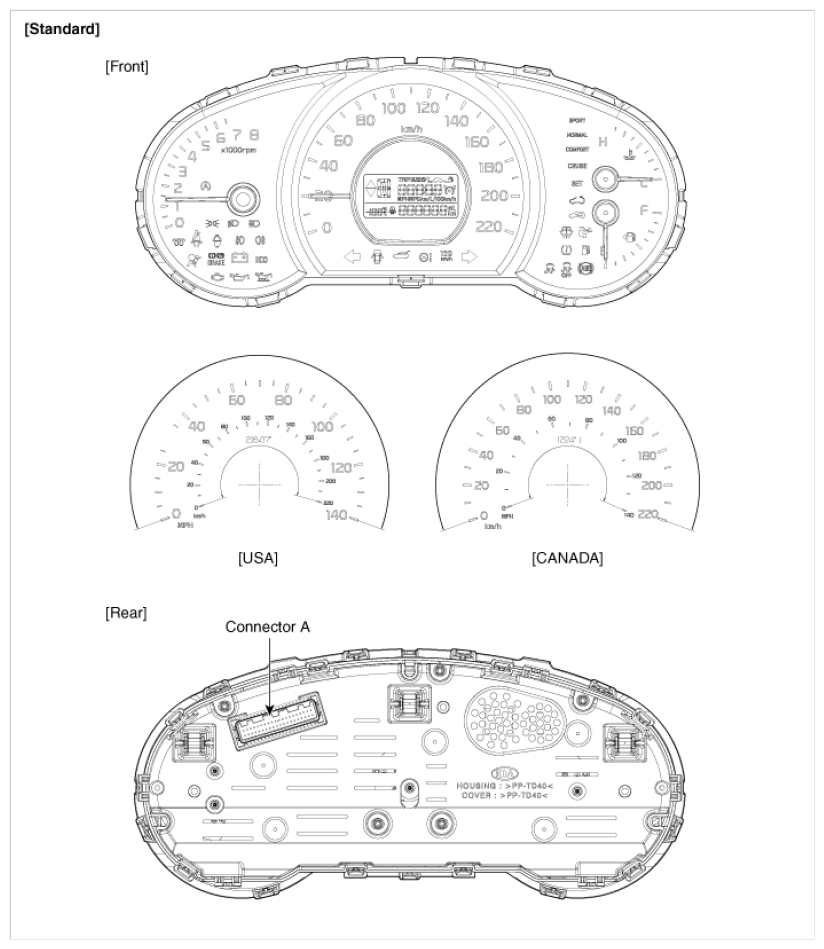

CONNECTOR PIN INFORMATION DESCRIPTION - STANDARD
| No. | Description |
|---|---|
| 1 | Ground signal 3 |
| 2 | Illumination output (-) |
| 3 | Rheostat switch down input |
| 4 | Rheostat switch up input |
| 5 | Detent output (+) |
| 6 | P output (+) (A/T) |
| 7 | R output (+) (A/T) |
| 8 | N output (+) (A/T) |
| 9 | D output (+) (A/T) |
| 10 | S output (+) (A/T) |
| 11 | ALT L output |
| 12 | ALT L input (-) (Battery charge) |
| 13 | - |
| 14 | Fuel sender (+) input |
| 15 | Airbag (+) input |
| 16 | Fuel sender (-) input |
| 17 | Immobilizer input |
| 18 | Speed output (4P output) |
| 19 | LDC (Battery (+)) input |
| 20 | Tail lamp input (Illumination (+)) |
| 21 | Trip switch (-) input |
| 22 | Trip switch 1 (+) input (Trip button) |
| 23 | Trip switch 2 (+) input (Cruise button) |
| 24 | Speed input (-) |
| 25 | - |
| 26 | Low washer level input (-) |
| 27 | Oil pressure switch input (-) |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | C CAN high |
| 33 | C CAN low |
| 34 | - |
| 35 | - |
| 36 | Active ECO switch input |
| 37 | Ground signal 1 |
| 38 | R input (M/T) |
| 39 | Ignition 1 |
| 40 | Battery (+) |

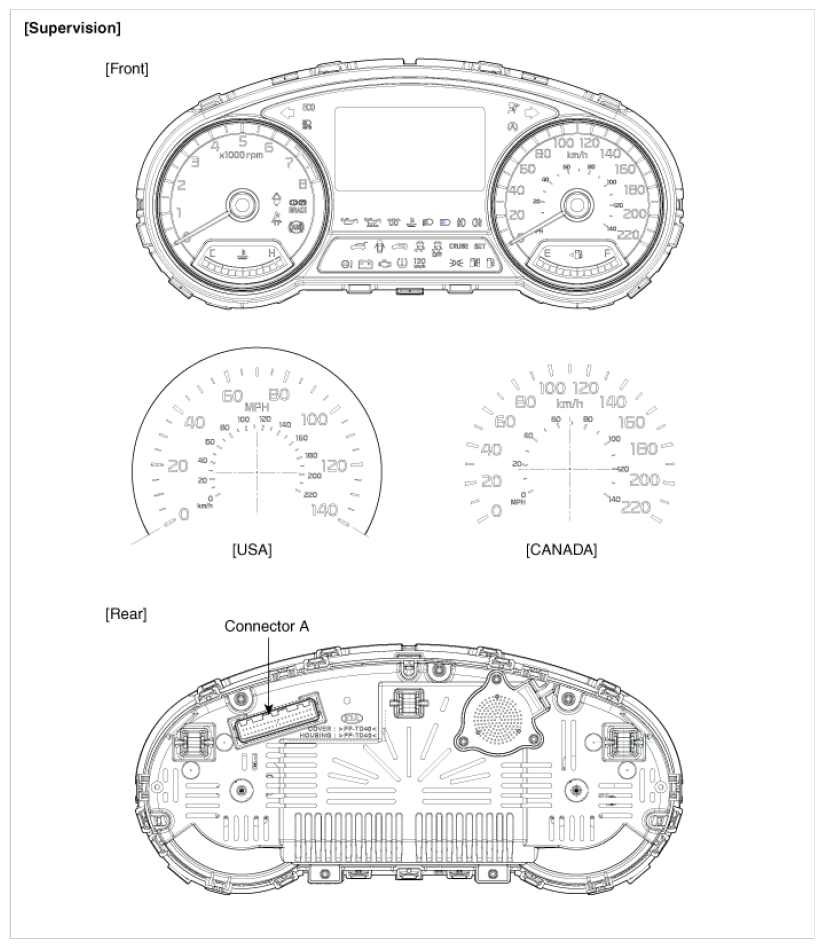

CONNECTOR PIN INFORMATION DESCRIPTION - SUPERVISION
| No. | Description |
|---|---|
| 1 | Ground signal 3 |
| 2 | Illumination output (-) |
| 3 | Rheostat switch down input |
| 4 | Rheostat switch up input |
| 5 | Detent output (+) |
| 6 | P output (+) (A/T) |
| 7 | R output (+) (A/T) |
| 8 | N output (+) (A/T) |
| 9 | D output (+) (A/T) |
| 10 | S output (+) (A/T) |
| 11 | ALT L output |
| 12 | ALT L input (-) (Battery charge) |
| 13 | - |
| 14 | Fuel sender (+) input |
| 15 | Airbag (+) input |
| 16 | Fuel sender (-) input |
| 17 | Immobilizer input |
| 18 | Speed output (4P output) |
| 19 | LDC (Battery (+)) input |
| 20 | Tail lamp input (Illumination (+)) |
| 21 | Trip switch (-) input |
| 22 | Trip switch 1 (+) input (Trip button) |
| 23 | Trip switch 2 (+) input (Cruise button) |
| 24 | Speed input (-) |
| 25 | - |
| 26 | Low washer level input (-) |
| 27 | Oil pressure switch input (-) |
| 28 | Heated wheel indicator input |
| 29 | M CAN low |
| 30 | M CAN high |
| 31 | - |
| 32 | C CAN high |
| 33 | C CAN low |
| 34 | - |
| 35 | - |
| 36 | Active ECO switch input |
| 37 | Ground signal 1 |
| 38 | R input (M/T) |
| 39 | Ignition 1 |
| 40 | Battery (+) |
