Component And Components Location: Components

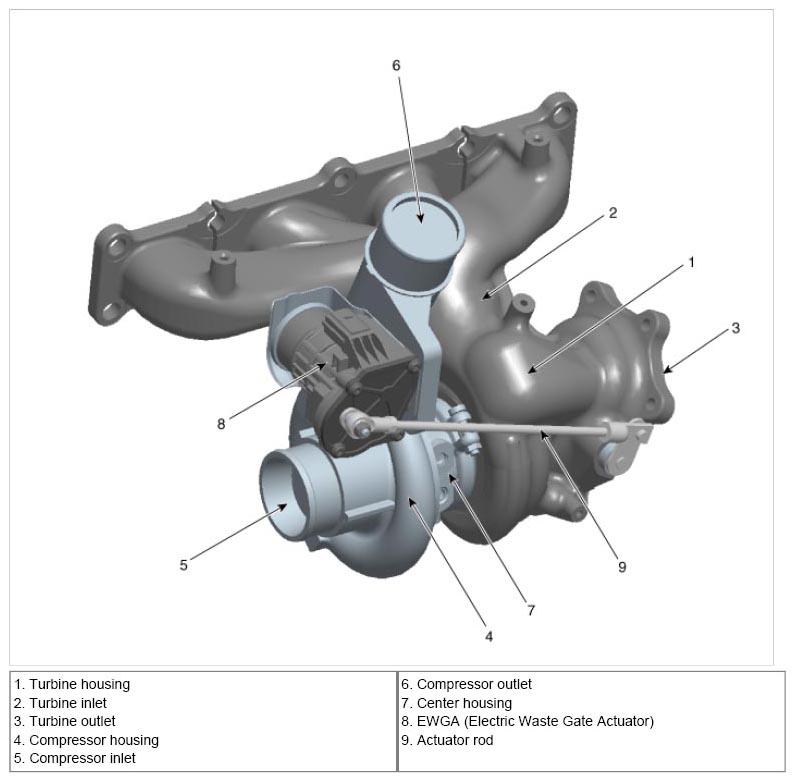

Fig 1: Identifying Turbocharger Components

G07385621

Courtesy of KIA MOTORS AMERICA, INC.
