Removal And Installation

Remove the engine cover (A).

Fig 1: Identifying Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery negative terminal (A).
Remove the air duct (B) after removing the mounting bolts.

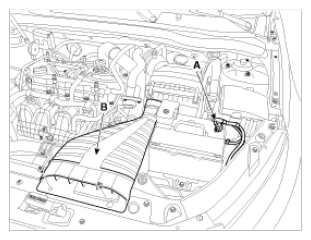

Fig 2: Battery Negative Terminal & Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
1. Disconnect the breather hose (A), the recirculation hose (B) and brake booster vacuum hose (C).
2. Disconnect the air intake hose (D) and then remove the air cleaner assembly (E).
  Tightening torque

  Hose clamp bolt:

  2.9 ~ 4.9 N.m (0.3 ~ 0.5kgf.m, 2.2 ~ 3.6 lb-ft)

  Air cleaner assembly bolts:

  7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

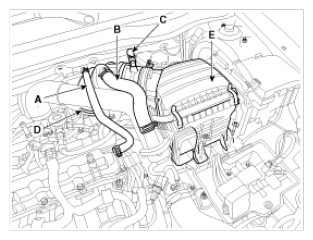

  Fig 3: Air Cleaner Assembly, Breather, Brake Booster & Air Intake Hoses
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under covers (A, B).

Fig 4: Engine Room Under Covers
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed. Refer to COOLING SYSTEM .
Disconnect the PCV hose (A), the intake OCV (Oil control valve) connector (B) and the OTS (Oil temperature sensor) connector (C).

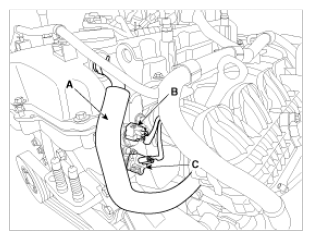

Fig 5: PCV Hose, Intake OCV Connector & OTS Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the A/C compressor switch connector (A), the alternator connector (B), the OPS (Oil pressure switch) connector & injector extension connector (C), the knock sensor connector (D), the MAPS (Manifold absolute pressure sensor) & IATS (Intake air temperature sensor) connector (E), the ETC (Electronic throttle control) connector (F) and the vacuum pump connector (G).

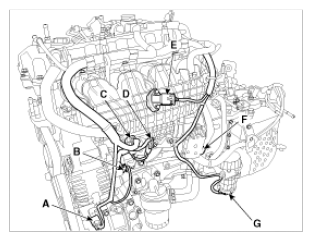

Fig 6: A/C Compressor Switch, Alternator, OPS, Knock, MAPS & ETC Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the throttle body coolant hoses (A).

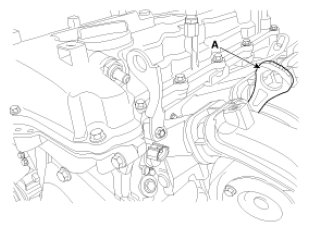

Fig 7: Throttle Body Coolant Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil level gauge (A).

Fig 8: Oil Level Gauge
Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold stay (A).
Tightening torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4 lb-ft)

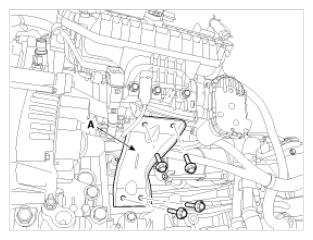

Fig 9: Intake Manifold Stay
Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold (A) after disconnecting the vacuum hoses.
Tightening torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4 lb-ft)

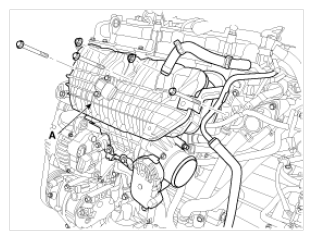

Fig 10: Intake Manifold
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with new gaskets.

When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown in Fig 11.

Fig 11: Intake Manifold Bolts & Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Installation is reverse order of removal.
